| Place of Origin: | Hebei，China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF130 |
Garden Fence 2x1x0.5m Galvanized Welded Gabion Basket
Gabion Mesh Basket Details
Gabion Fence System is a high - quality steel mesh.They can be filled with hard and durable stone on site to form a mass gravity retaining wall structure.Because they lack flexibility.Welded steel cages cannot be adapted to uneven settlement or used in rivers.Compared with the woven steel wire gabion, the strength of the welded gabion is higher.In order to meet different engineering requirements, welding gabion box can provide different line diameter and unit size.
Gabion Mesh Basket Specifications:
|
Nominal Box sizes (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
| 1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 | |
| 1.5x1.0x0.5 | 0 | 0.75 | |
| 1.5x1.0x1.0 | 0 | 1.50 | |
| 2.0x1.0x0.5 | 1 | 1.00 | |
| 2.0x1.0x1.0 | 1 | 2.00 | |
| 3.0x1.0x0.5 | 2 | 1.50 | |
| 3.0x1.0x1.0 | 2 | 3.00 | |
| 4.0x1.0x0.5 | 3 | 2.00 | |
| 4.0x1.0x1.0 | 3 | 4.00 |
Gabion Mesh Basket Applications

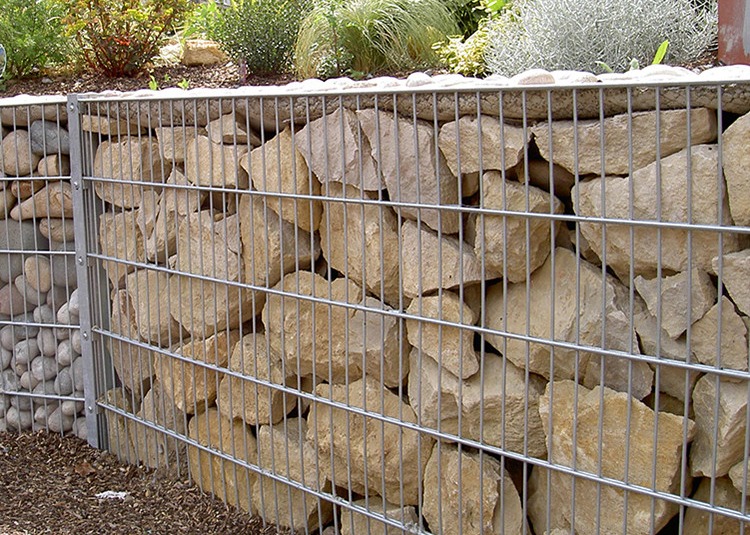

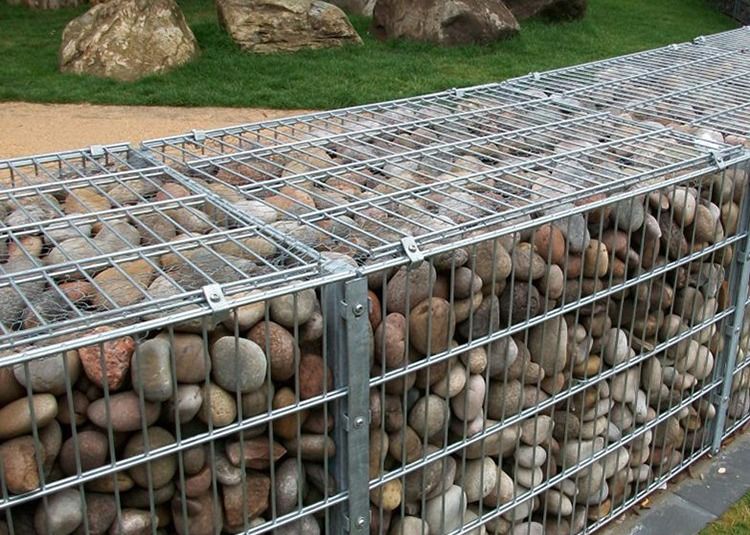

Gabion Fence can be used as protective fences around your properties or as a support on slopes or paths. Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
Gabion Fence System Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
