Army Security Metal Welded Galvanized Hesco Barrier Blast Wall
Hesco Barrier Blast Wall Brief Introduction
The Blast wall fencing also named as the HESCO MIL,Hesco barrier,or Hesco bastion,is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against small-arms fire and/or explosives. It has seen considerable use in Iraq and Afghanistan.

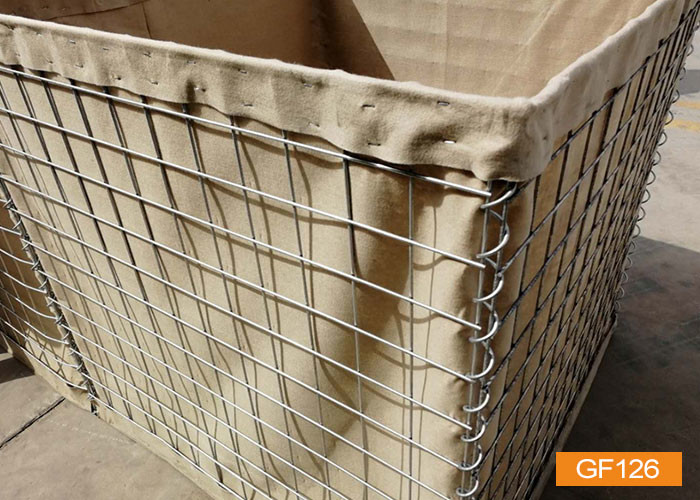

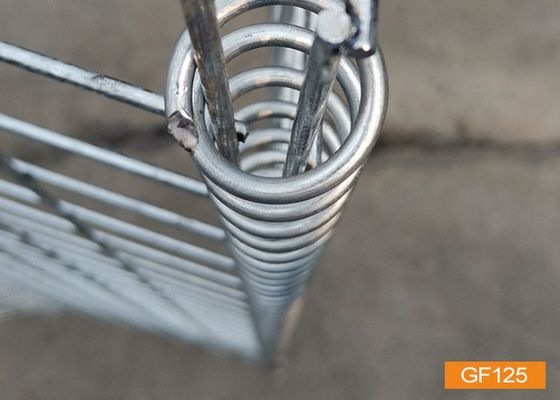

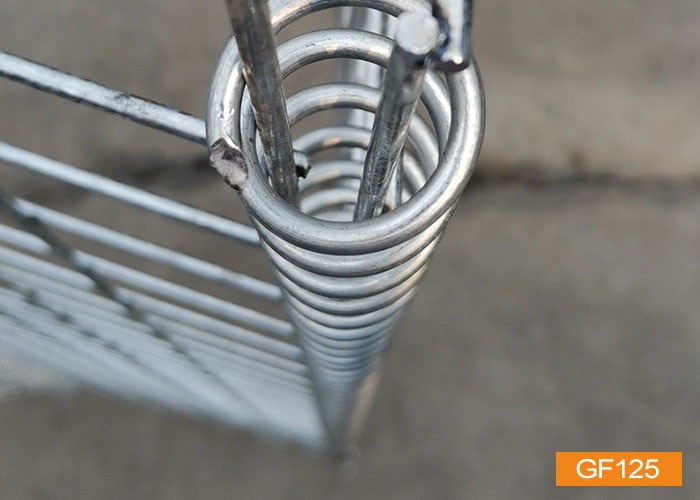

Blast Wall is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile.Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely use in military to protect safety.
Specifications
| wire diameter | Spring wire | Mesh Size |
| 4.0mm/4.5mm/5.0mm | 4.0mm/5.0mm | 76*76mm/50*100mm/100*100mm |
| surface treatment | 1.galvanized wire welded | 2. hot dip galvanized after welded |
Size
| PRODUCT ITERM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
| GM MIL1 | 54"(1.37M) | 42"(1.06M) | 329"(10M) | 5+4=9 cells |
| GM MIL2 | 24" (0.61M) | 24"(0.61M) | 4(1.22M) | 2 cells |
| GM MIL3 | 39"(1.00M) | 39"(1.00M) | 32.9"(10M) | 5+5=10 cells |
| GM MIL4 | 39"(1.00M) | 60"(1 52M) | 32" 9"(10M) | 5x2+5x2=20 cells |
| GM MIL5 | 24"(0 61M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL6 | 66"(1.68M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL7 | 87"(2. 21M) | 84"(2.13M) | 91(27.74M) | 5+4+4=13 cells |
| GM MIL8 | 54"(1.37M) | 48"(1.22M) | 32: 9"(10M) | 5+4=9 cells |
| GM MIL9 | 39"(1.00M) | 30'"(0.76M) | 30(9.14M) | 6+6=12 cells |
| GM MIL10 | 87"(2. 21M) | 60'"(1.52M) | 100(30.50M) | 5+5+5+5=20 cells |
| GM MIL11 | 48"1.22M) | 12"(0.30M) | 4(1.22M) | 2 cells |
| GM MIL12 | 84"(2.13M) | 42"(1. 06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
| GM MIL19 | 108"(2.74M) | 42"(1. 06M) | 10'5(3. 18M) | 6 cells |
Application
Defensive Walls
Forwawrd operating bases
Accommodation bunkers
Perimmeter security
Blast and ballistic protection
Command& control centres
Training grounds & shoot house
Military compounds
Ammunition storage
Explosive traverses
Vehicle check points
Hostile vehicle mitigation
Feature
The surface can do there types :1) hot dip galvanized after welded the zinc coating can reach 400g/m2 2) pre-galvanized wire welded,zinc coating can reach 40-60g/m2
Produce process
Purchase the raw material wire--Zn/Ai coating test--straingting--cutting--welding panel--spring installed--attached woven fabric--packing--Loading
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
Quality Control Process
1. Raw material test the Zn/Ai
2. Semi-finished product test the size and quality
3. Finished Product’s Test the surface adhesive force (usually the post surface test )
4. Finished Product’s installation
Service
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
