Triangle Bend BRC Weld Mesh Roll Top Wire Fence Panel
Roll Top Wire Fence Panel Introduction
Roll Top Wire Fence Panel Specification
|
Line wire x |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
|
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm |
2m 2.2m 2.4m 2.5m 2.8m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 3.PE coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 |
Roll Top Wire Fence Panel Post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40x40mm 50x50mm 60x60mm |
1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
|
Round post
|
Φ48mm Φ60mm Φ75mm |
1530mm | 1550mm | 2000mm | ||
| 1830mm | / | 2400mm | ||||
| 2030mm | / | 2500mm |

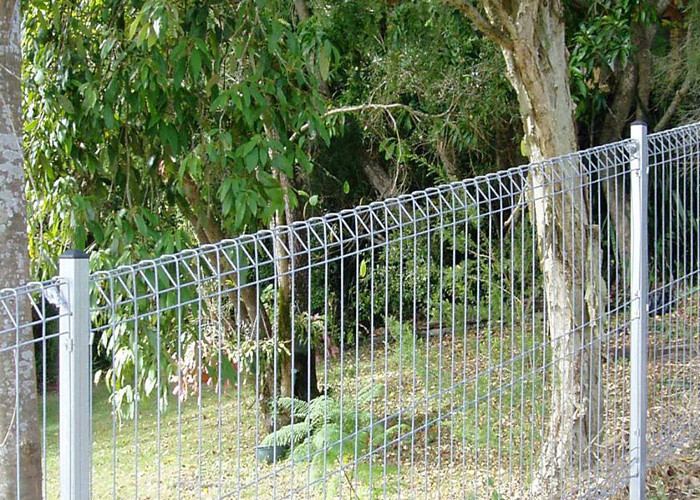

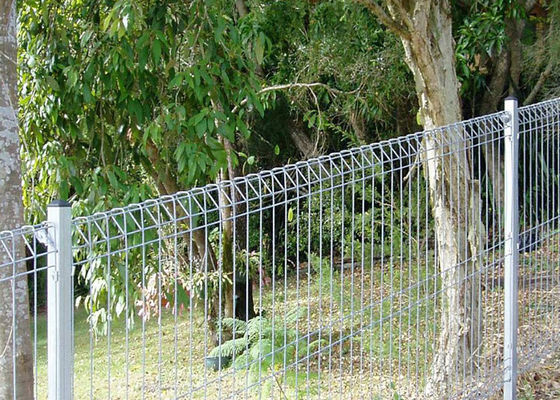

Application
Roll top fencing is extensively used for protection of cities, including gardens, lawn, zoos, pools and lakes, roads and uptowns, decoration of hotels, restaurants, supermarkets and so on.
Roll Top Wire Fence Panel Installation
Roll Top Wire Fence Panel Packing
