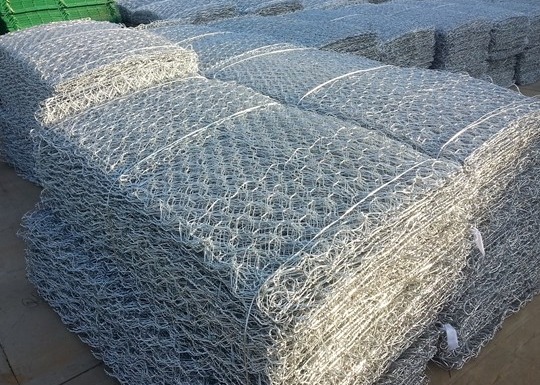

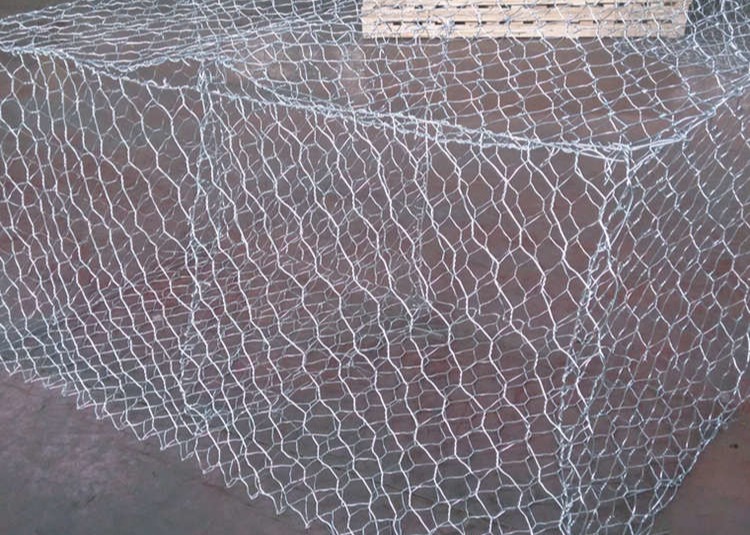

Heavy Zinc Hot Dipped Galvanized Hexagonal Woven Gabion Mesh Basket
Gabion Basket Details

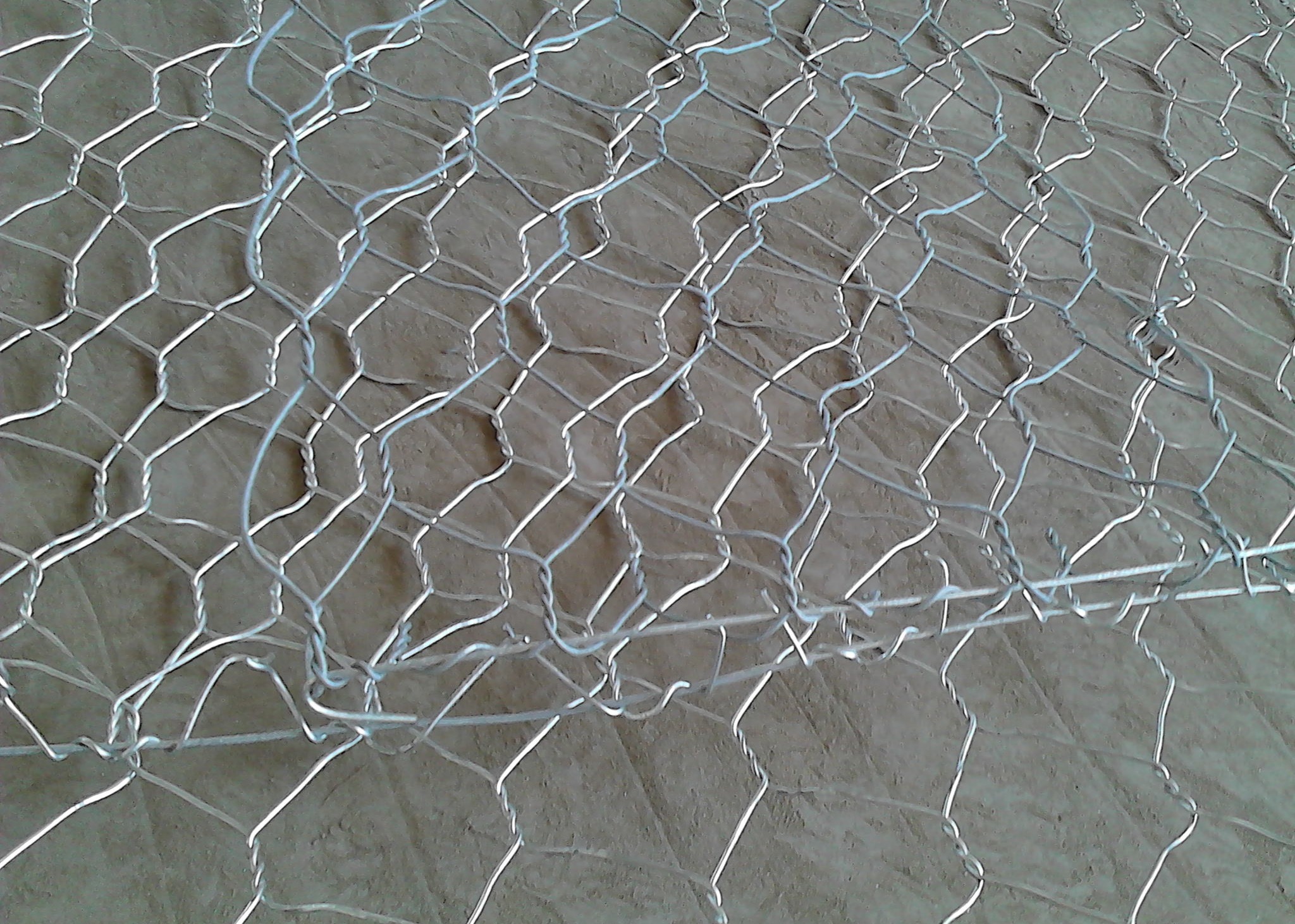

Woven gabion baskets are made of high quality steel wire, which has 2 types of fabrication: double or triple twist fabric.
Compared with welded gabion baskets, woven gabion baskets are flexible and variable, have durability for a long service life.
Gabion Box Specifications
| Gabion Size(m) | Mesh Model | |||||
| 8x10 | 6x8 | |||||
| Length | Width | Height | Gal. or PVC coated | Gal. or PVC coated | ||
| Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight | |||
| 2m | 1m | 1m | 2.7mm | >245g/m2 | 2.0mm | >215g/m2 |
| 3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
| 4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | Lacing wire 2.7mm | Lacing wire 2.0mm | ||
Gabion Box Applications
Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion Box Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
