| Place of Origin: | Hebei，China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF130 |

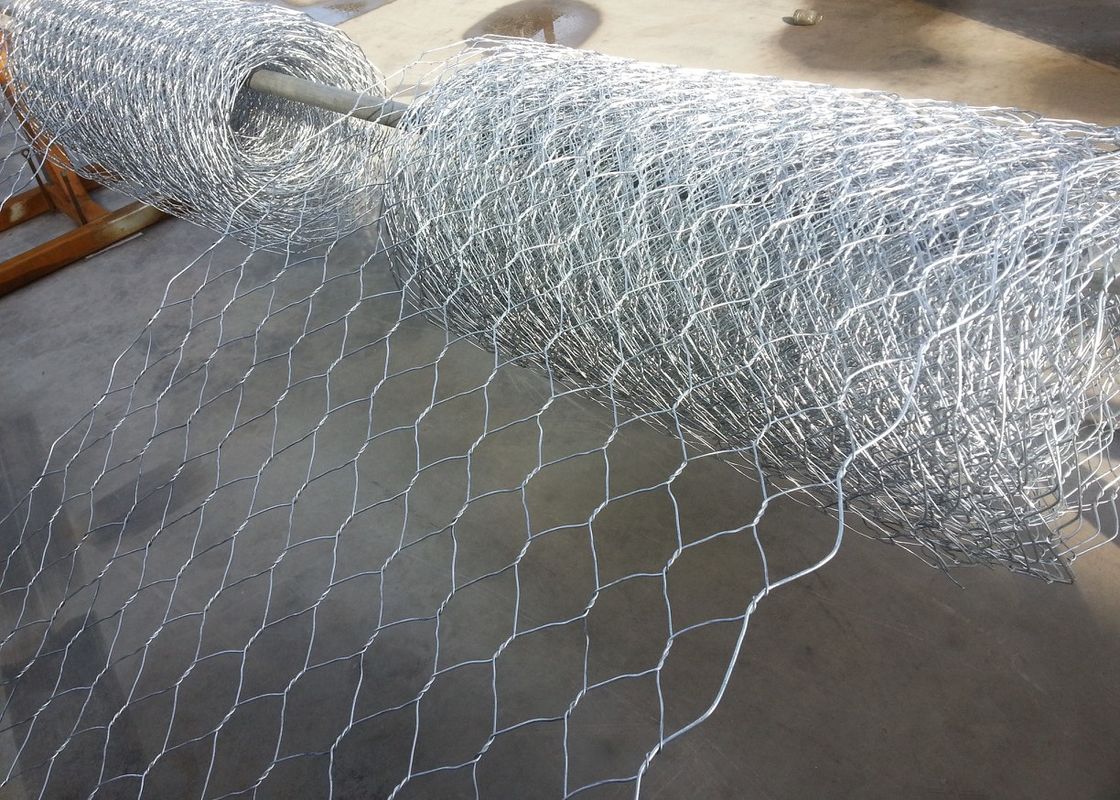

Galv And Galf Hexagonal Hot Dipped Galvanized Woven Gabion Box
Gabion Box Details
Gabion, is a kind of heavy duty hexagonal wire netting. It is known as gabion basket, gabion box.Gabion is made of hexagonal wire mesh, the wire diameter is basis on the different sizes of
hexagonal. If the wire is zinc coated the wire diameter should be 2.0mm to 4.0mm, If it is PVC coated, the wire should be 3.0mmto 4.5mm.Then the edge wire should be thicker one size
gauge than the hexagonal mesh wire.
Gabion Box Specifications
| Gabion Size(m) | Mesh Model | |||||
| 8x10 | 6x8 | |||||
| Length | Width | Height | Gal. or PVC coated | Gal. or PVC coated | ||
| Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight | |||
| 2m | 1m | 1m | 2.7mm | >245g/m2 | 2.0mm | >215g/m2 |
| 3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
| 4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | Lacing wire 2.7mm | Lacing wire 2.0mm | ||
Gabion Box Applications
Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion Box Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
