18 Inch Diameter 32 Ft Long Galvanized Razor Barbed Wire Hot Dipped Galvanized Razor Barbed Wire
Razor Barbed Wire Product Description
Razor Barbed Wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

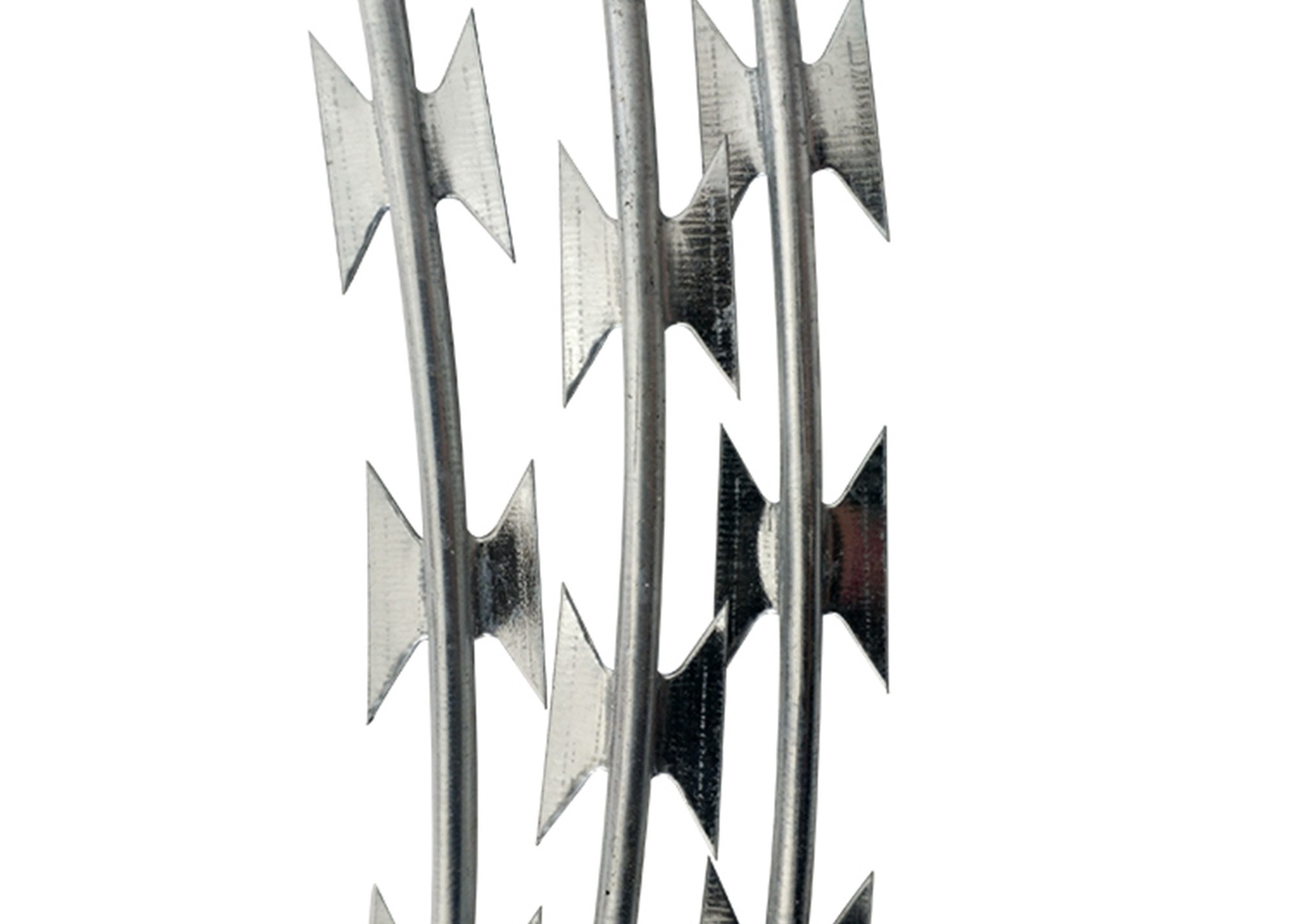

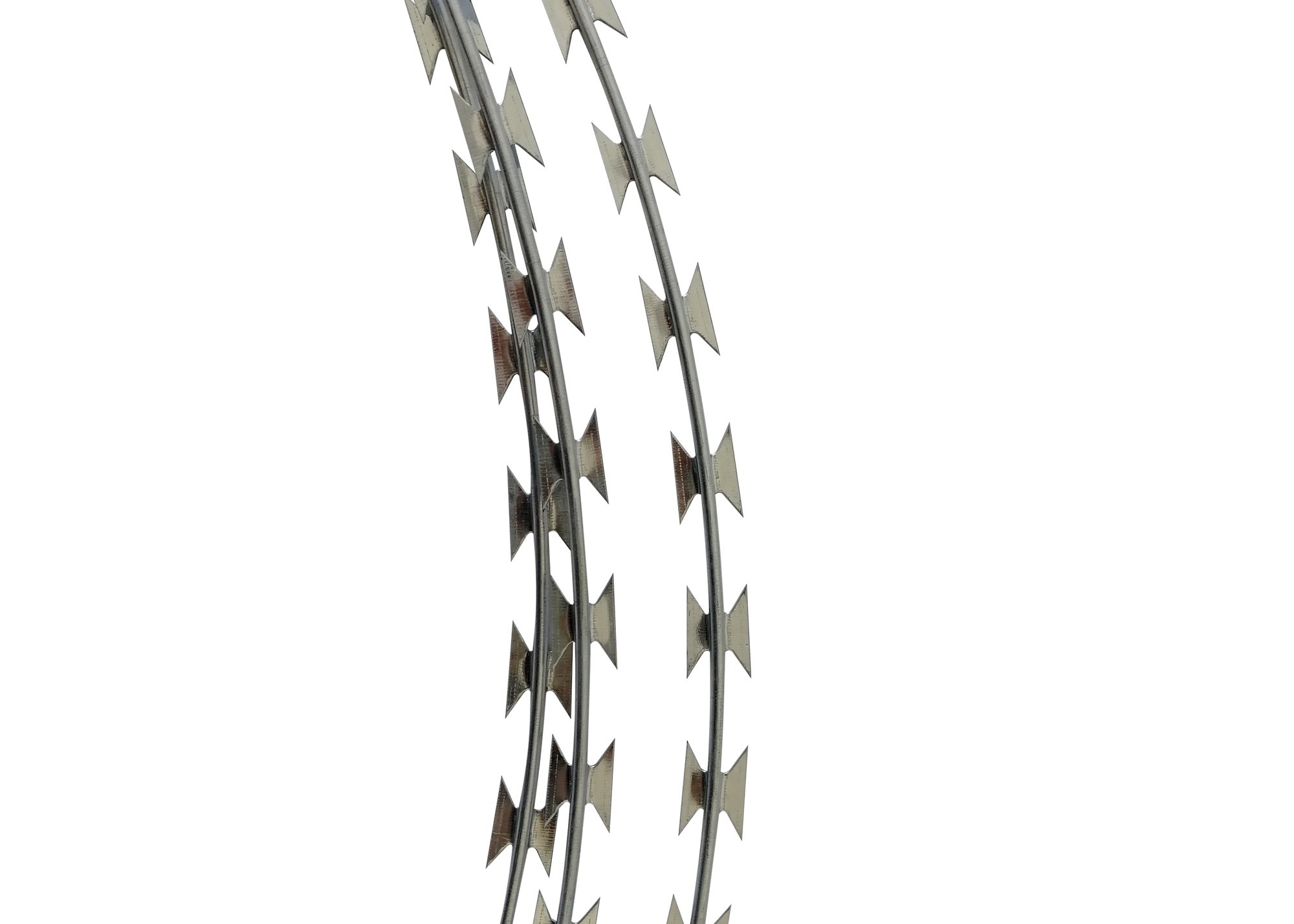

Razor Barbed Wire with beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor Barbed Wire Specifications
|
Reference |
Thickness |
Wire Dia |
Barb |
Barb |
Barb |
|
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
25±1 |
|
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
25±1 |
|
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
35±1 |
|
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
36±1 |
|
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
46±1 |
|
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
46±1 |
|
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
101±2 |
|
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
|
450mm |
33 |
8M |
CBT-65 |
Single coil |
|
500mm |
41 |
10M |
CBT-65 |
Single coil |
|
700mm |
41 |
10M |
CBT-65 |
Single coil |
|
960mm |
53 |
13M |
CBT-65 |
Single coil |
|
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
|
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
|
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
|
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
|
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |
Razor Barbed Wire
1.Razor barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
2.Material: high carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.
3.Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.
