HD Galvanized Australia Standard Temp Fence Panels

50sets
MOQ
Negotiable
Price
HD Galvanized Australia Standard Temp Fence Panels
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Australia Temp Fence
Metal Type: Hot Dipped Galvanized
Pressure Treated Wood Type: Heat Treated
Frame Finishing: Galvanized
Feature: Easily Assembled
Wire Diameter: 3-5mm
Height: 1-5m
Length: 1-5m
Color: Silver
Application: Domestic Housing Sites; Crowd Control
High Light:

Australia Standard Temp Fence Panels

,

HD Galvanized Temp Fence Panels

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Payment & Shipping Terms
Packaging Details: 1.panel bulk in the container , feet packing with pallet 2. clips packing in the carton box
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Product Description

High Weight Hot Dip Galvanized Australia Standard Temporary Fence



Temporary Fence​ Specifications



Temporary Fence Specification
Wire Gauge 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request
Opening Mesh 60*150mm, 75*75mm, 75*100mm, 50*100mm etc
Fence Frame Pipe 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc
Regular Size 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request
Plastic Feet 600*220*150mm, or 580*245*130mm
Surface Treatment black material weld then Hot-dipped galvanized or Galvanized tube welded
Part Welded mesh Panel, Round Tube Frames,Plastic feet Clamp,StaySupport


Temporary Fence​ Brief Introduction

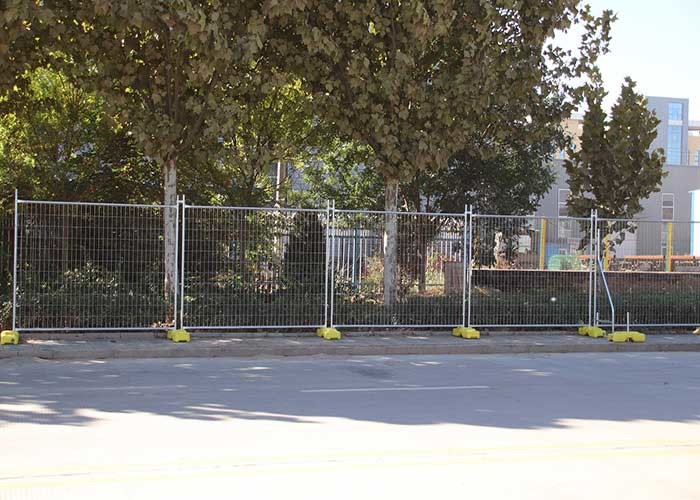

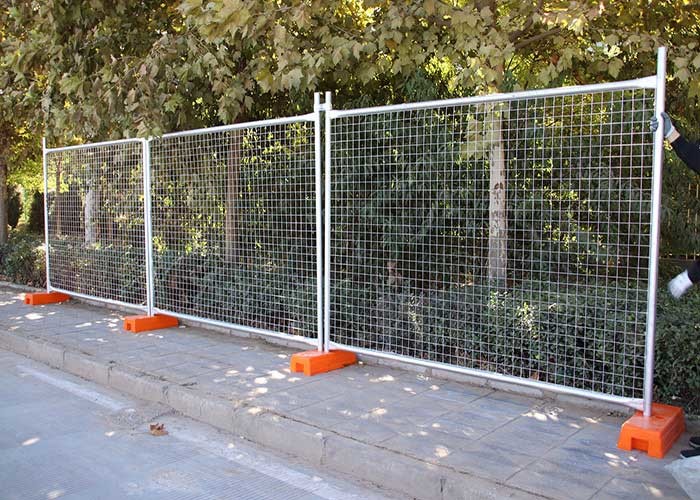

  • Australia Temporary Fence​ is a kind of temporary fence constructed by galvanized wires and tubes. It made from galvanized wires and tubes and they are sturdy enough to protect people's security in construction site, road closure, accident spots.
  • These panels can be installed by one single person, which makes setting up and dismantling that much easier, without decrease security and durability. The mesh is strong and stands up against the caprices of weather, the harshness of various types of site and human interference. When properly installed, they are extremely sturdy, providing a high level of safety and security to all types of areas.



Australia Temporary Fence Popular Size
Wire Diameter 4mm
Mesh Opening 60x150mm.70x100mm
Panel Size 2100x2400mm
Vertical Pipe Size O.D. 32mmx2.0mm, 42mmx1.8mm,150mm left at top and bottom
Horizontal Pipe Size O.D. 32mmx2.0mm, 42mmx1.8mm
Base Plate 600x220x150mm
Part Welded mesh Panel, Round Tube Frames,Plastic feet Clamp,StaySupport



Temporary Fence Application

  • Special Events;
  • Commercial Construction;
  • Domestic Housing Sites;
  • Crowd control;
  • Exhibitions;
  • Sporting events;
  • Concerts / Parades;
  • Local Council Work Sites;
  • Environmental Protection Areas;
  • Safety / Hazard Compounds;
  • Equipment Isolation

Temporary Fence Feature



• Quickly and easy installation and removable
• Cost effective
• Recycle
• Different options on color according to the using environment

The surface can do there types :1) hot dip galvanized after welded the zinc coating can reach 400g/m2 2) pre-galvanized wire and tube welded,zinc coating can reach 40-60g/m2 3) pre-galvanized wire and tube welded then PVC coating. Many RAL colors for your reference

Different blocks:1) injection molding 2) blow molding 3)steel plate



Parts Of Temporary Fence



1. Fending Feet

The feet of Temporary Fence are removable that makes the transportation and storage much easier and more efficient.



HD Galvanized Australia Standard Temp Fence Panels 0

2. Clamps



HD Galvanized Australia Standard Temp Fence Panels 1



3. Temporary Fencing Stay



HD Galvanized Australia Standard Temp Fence Panels 2



Australia Temporary Fence process



HD Galvanized Australia Standard Temp Fence Panels 3



Packing terms



1. Panel and plastic feet all packing with the pallet (steel pallet)

2. Panel bulk and the plastic feet packing with pallet

3. Clips packing in the carton box



Quality Control Process



1. Raw material test the Zn/Ai

2. Semi-finished product test the size and quality

3. Finished Product’s Test the surface adhesive force (usually the post surface test )

4. Finished Product’s installation



Service



Product Service

Our products offer 10 YEARS GUARANTEE.

Product customization services

We can customize products according to your requirements, including design and drawing.

After-sales service

Our after-sales service start immediately after signing the contract.

1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.

2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.

3.Do our best to help customer arrange the shipment and customs clearance.

4.Installation, maintenance and repair instructions with full information.



HD Galvanized Australia Standard Temp Fence Panels 4
