6FT*10FT USA Standard Temp Construction Fence
USA Temporary Construction Fence Brief Introduction
Material: Q235 low cartbon steel tube and steel wire
Surface Treatment: Hot-dipped galvanized, electro galvanized and
powder coatd, pvc coated
Application: used for secure construction sites, private property, major public events,
sports, concerts, festivals & gatherings etc.
Color: green, yellow, blue, black ,red etc
Main Market: Canada, USA etc
Our Heavy Duty Temporary Construction Fence are designed for long life and regular use. They incorporate an anti-climb weld mesh infill and are fully hot dipped galvanised.
When used in conjunction with our Plastic/Concrete Fence Feet, Clamps and Stays, it creates a Complete
Temporary Fencing System that is very stable, versatile and cost effective.
USATemporary Construction Fence Specifications
| Tubing | 1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm) |
| Thickness of Tubing | 16GA/ 1.6mm thick or as customized size |
| Chain mesh aperture | 2"x2/"(50mm x 50mm) 2¼"x2¼"(57mmx57mm) 2⅜x2⅜(60mmx60mm) 2½"x2½" (63mmx63mm) |
| Height | 6ft,8ft |
| Width | 8ft,10ft,12f |
| Panels Size | 6ftx8ft,6ftx10ft,6ftx12ft,8ftx12ft |
| Diameter /Gauge | 10ga/3.2mm ,10.5ga/3.00mm ,11ga/2.90mm,11.5ga/2.75mm,12ga /2.60mm 12.5ga/2.5mm 13ga/2.3m |
| Base Optional 1 | 36" length x 30" width x 8" Height /914mmx762mmx203mm |
| Base Optional 2 | 36" length x 16" width x 8" Height /914mmx406mmx203mm |
| Base Optional 3 | 30" length x 18" width x 8" Height /762mm x460mm x203mm |
| Standard | Giant Fence 047 |
| Steel | Galvanized Steel Construction |
| Finish | Corrosion-Resistant Zinc Coating |
| Transport Packing | Metal pallet Wrapped with Plastic |
| HDG zinc thickness | SQM14 microns 100gram/SQM 28 microns 200 gram/SQM 42 microns 300 gram/SQM |
USATemporary Construction Fence Characteristic:
USATemporary Construction Fence Application
Widely used in garden, factory, road, airport, municipal greenbelt and harbor greenbelt etc.
Process
Packing terms
1. Panel and plastic feet all packing with the pallet (steel pallet)
2. Panel bulk and the plastic feet packing with pallet
3. Clips packing in the carton box
Quality Control Process
1. Raw material test the Zn/Ai
2. Semi-finished product test the size and quality
3. Finished Product’s Test the surface adhesive force (usually the post surface test )
4. Finished Product’s installation

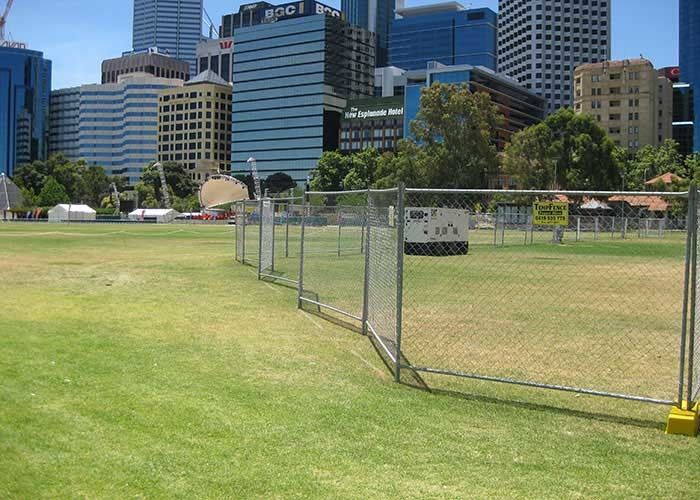

America Temporary Construction Fence Picture Show
