6 Gauge Pvc Coated Welded Wire Mesh Fence 3 D Curved Welded Wire Mesh Fence For Garden Fence
V Mesh Security Fencing Description

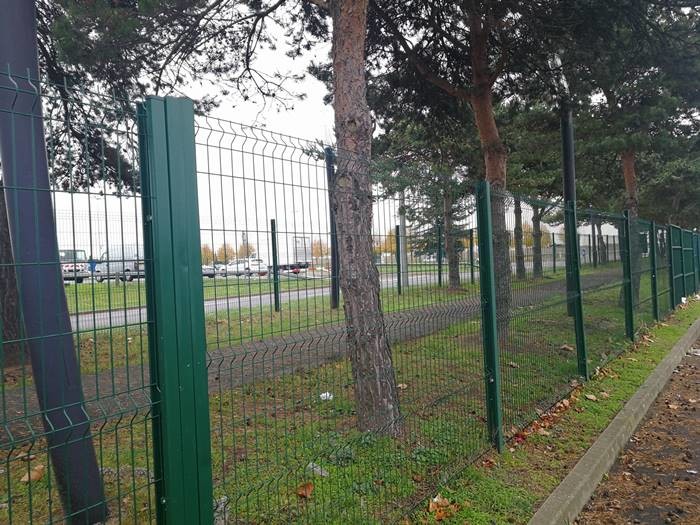

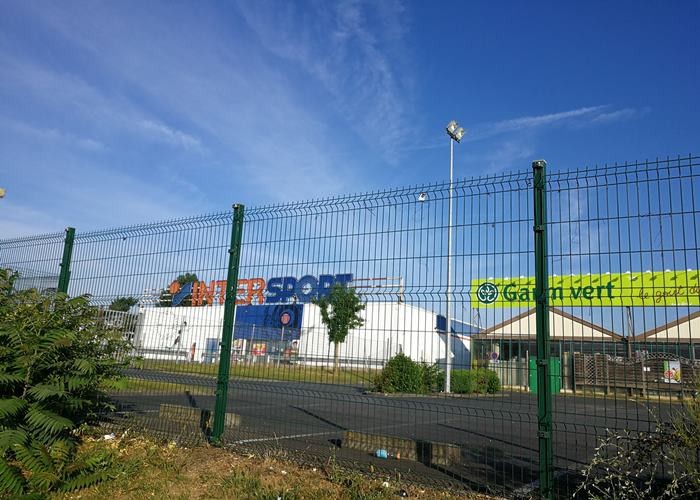

1.The 3D welded wire mesh fence system offers security but without an oppressive and intimidating appearance.
2.The mesh is 50x200mm, fully welded at every intersection.
3.The width of the panels suits post centre of approx. 2500mm
4.Welded wire mesh fence is available in a galvanized finish; in addition they can be colour coated in a wide choice of colors.
V Mesh Security Fencing Specification
|
Height |
Width |
Thickness |
Wire Diameter |
|
|
Mesh panel |
1.8m |
2m/2.5m
|
4mm/5mm |
Mesh Size |
|
Square post |
1.8m/2m |
1.5mm |
60mm*60mm |
|
|
Peach post |
1.8m/2m |
1.2mm |
50mm*70mm 70mm*100mm |
|
|
Round post |
1.8m/2m |
1.5mm/2mm |
48mm/60mm |
|
|
Hole opening |
50mm*200mm , 50mm*100mm |
|||
|
support leg |
300mm |
|||
|
Post cap |
Plastic cap or Steel cap |
|||
|
Clamps |
Plastic clamps or steel clamp |
|||
|
Bolts&Nuts |
According to need |
|||
|
Single arm or double arm |
On request | |||
| Tension wire or barbed wire | On request | |||
| Concertina razor wire | On request | |||
V Mesh Security Fencing Application
Welded wire mesh with excellent corrosion resistance and oxidation resistance, is extensively
used as fencing, decoration and machinery protection material in agriculture, construction,
transport, mine, sports field, lawn and various industrial fields.
Package
Fence panle:
Plastic film at the bottom to avoid the panel be destroyed
Metal corners to ensure the panel strong and uniform
Wood plate at the top of pallet to keep the under panel
Pallet tube size:40*80mm tubes at the botom vertical position
Fence post:
plastic cap cover onto the post
plastic film +metal pallet for fence pot
