| Place of Origin: | Hebei，China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF130 |

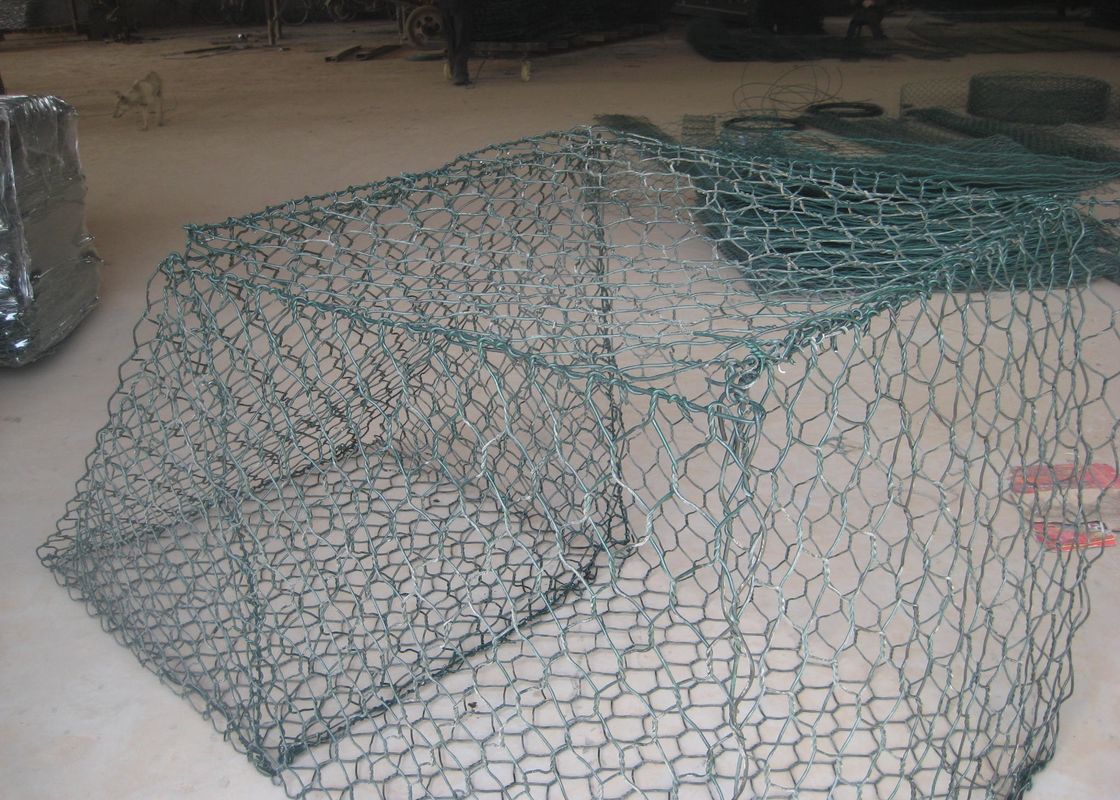

Pvc Coated Hexagonal Gabion Box Wire Netting Gabion Box
Gabion Fence System Details
A double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells,interconnected with other similar units, and filled wih stone at the project size to form flexible ,permeable, monolithic structures such as retaining walls, sea wall,channel linings,revetments,and weirs for erosion control projects.
Gabion Fence System Specifications
| Mesh Opening | Wire Diameter | Selvage Wire | Lacing Wire |
| 60*80mm | 2.0-2.8mm | 3.0-4.0mm | 2.0-2.4mm |
| 80*100mm | 2.0-3.0mm | 3.0-4.0mm | 2.0-2.4mm |
| 100*120mm | 2.0-3.0mm | 3.0-4.0mm | 2.0-2.4mm |
| 100*150mm | 2.0-3.0mm | 3.0-4.0mm | 2.0-2.4mm |
| 120*150mm | 2.0-3.0mm | 3.0-4.0mm | 2.0-2.4mm |
| Special specifications can be customized according to customer requirements | |||
Gabion Fence System Applications
Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion Fence System Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
