Hinge Joint Fence Field Fence Galvanized Farm Fence Livestock Fence Panels
Livestock Fence Panels
Long life hot dip galvanized woven wire farm build farm fencing wire is mainly used as a captive animal, including but not limited to deer bar, cowshed, fold, bear, horse bar fence. It can also be used as a fence for poultry. We can provide a square trading field fence, a hinged joint field fence, a fixed field fence, and a V fence. There are PVC steel wire or zinc alloy wire or hot dipped steel wire.
Livestock Fence Panels Specifications
No. | type | Specification | Weight (kg) |
Top and bottom wire Dia. (mm) | Body wire (mm) |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.2 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
Note: The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(mm). |

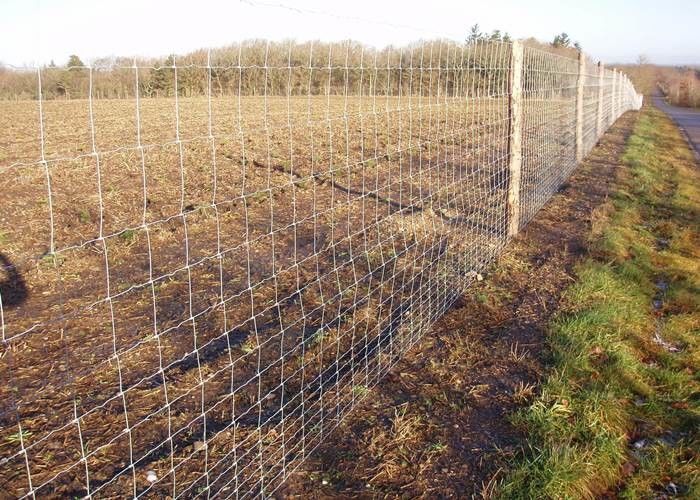

Livestock Fence Panels Application
It is easy to use the planning of grassland resources, effectively improve grassland utilization and grazing efficiency, prevent grassland degradation and protect the natural environment. They are also applicable to agriculture, herd residents to establish family farms in the establishment of the border, farmland circle bar, forest nursery, afforestation enclosure, tourist area and hunting area, construction site isolation and maintenance.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. in bulk
