50*200 H1030mm Iron Galvanized Welded Wire Fence

50*200 H1030mm Iron Galvanized Welded Wire Fence
50*200 H1030mm Iron Galvanized Welded Wire Fence 50*200 H1030mm Iron Galvanized Welded Wire Fence

Large Image :  50*200 H1030mm Iron Galvanized Welded Wire Fence

Product Details:
Place of Origin: Hebei, China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF003
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: Negotiable
Packaging Details: 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Detailed Product Description
Model Number: V Mesh Security Fencing Frame Material: Metal
Metal Type: Iron Pressure Treated Wood Type: Heat Treated
Frame Finishing: Powder Coating Feature: Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
Usage: Garden Fence, Highway Fence, Sport Fence, Farm Fence Type: Fencing, Trellis & Gates
Material: Low Carbon Steel Wire Opening Size: 50*200
Bending No: 2 Height: 1030
Post Type: Peach Post Surface Treatment: Galvanized+PVC Coated
Color: White,Black Application: Residential,School
High Light:

50*200 Galvanized Welded Wire Fence

,

H1030mm Galvanized Welded Wire Fence

,

Iron Galvanized Welded Wire Fence

Fold Fence Iron Wire V Mesh Security Fencing





Description

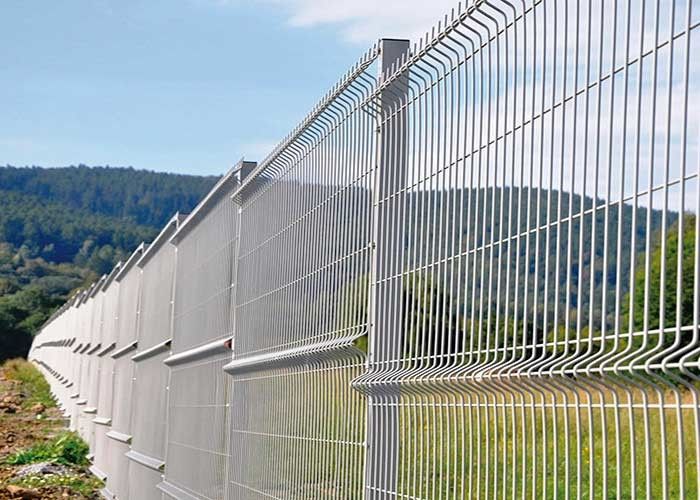

  • V Mesh Security fencing has to be right and good. Whether you need to keep people and animals in or out of a building or an area, it’s crucial to have the standard of security barriers in place that will get the job done
  • The V Mesh Security Fencing feature large upper profiles for extra strength and groups of 6 wires at 25mm wire centres followed by 45mm mesh apertures. This ever-popular decorative effect gives your fencing a uniquely stylish ‘striped’ appearance and offers increased security for your fence line.

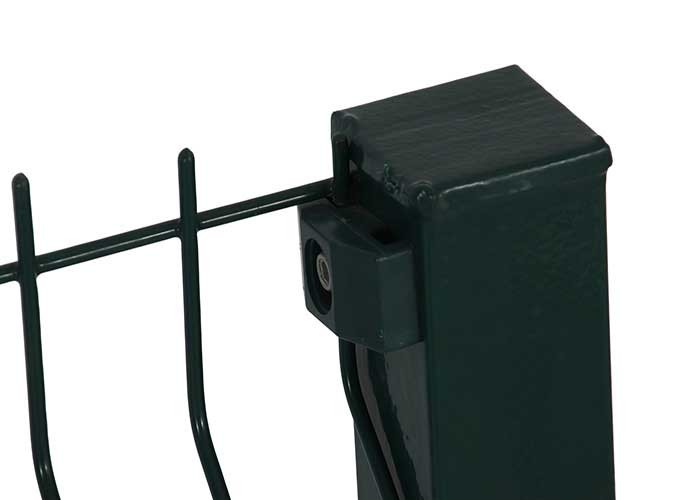

  • V Mesh Security Fencing looks great around public buildings, schools, retail premises and industrial buildings. Featuring steel security clips and hex bolts fastening each panel to the galvanised 60 x 40mm RHS steel posts, this fencing system is built to last.



Feature



• Horizontal “v” shaped beams give the panels extra rigidity
• Mesh apertures generally 200mm x 50mm
• Non Standard panel designs are available (minimum production quantity required)
• Produced from Galvanised wire to BS EN 10244-2:2001 class D
• Suitable for multi – lift installations
• Range of wire available from 3.90mm - 7.50mm diameter
• Range of heights available from 1030mm* - 3030mm*
• Panels are normally produced 3.00m wide (reducing installation & post costs by approx 20%, when compared with a 2.50m wide panel)
* Nominal panel heights, actual panel heights may vary with design



Specification



Line wire x

Cross wire

Hole Size Panel Length Panel Height Bending No. Common Color Surface treatment

4x4mm

4.5x4mm

4.5x4.5mm

5x4mm

5x5mm

6x5mm

6x6mm

50X100mm

50X200mm

55X200mm

75X150mm

100X300mm



2m

2.2m

2.4m

2.5m

2.8m

3m

830mm 2

Green RAL6005

Grey RAL7016

Brown RAL8019

Black RAL9005

White RAL9010

1.Hot-dipped galvanized after black wire welded

2.PVC coated after galvanized wire welded

3.PE coated after galvanized wire welded



Specifications Of the Sqaure Post



Post view Size Thickness Panel height Base post Normal post Surface treatment
Square post

40*40mm

50*50mm

60*60mm

1.0mm

1.1mm

1.2mm

1.5mm

1.8mm

2mm

2.5mm

830mm 850mm 1200mm

1.Black tube Hot-dipped galvanized

2.Galvanized tube PVC coated

1030mm 1050mm 1400mm
1230mm 1250mm 1600mm
1530mm 1550mm 2000mm
Rectangle post

30*50mm

40*60mm

60*80mm

1830mm / 2400mm
2030mm / 2500mm
2230mm / 2800mm
2430mm / 3000mm



Application

  1. Commercial grounds (Corporation, hotel, supermarket)
  2. Private grounds (Courtyard, Villadom)
  3. Public grounds (Park, zoo, train or bus station, lawn);
  4. Road and transit (Highway, railway or road city transit);
  5. 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc.

50*200 H1030mm Iron Galvanized Welded Wire Fence 0

50*200 H1030mm Iron Galvanized Welded Wire Fence 1

50*200 H1030mm Iron Galvanized Welded Wire Fence 2
