| Place of Origin: | Hebei, China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF025 |
Temp Construction Fence Introduction

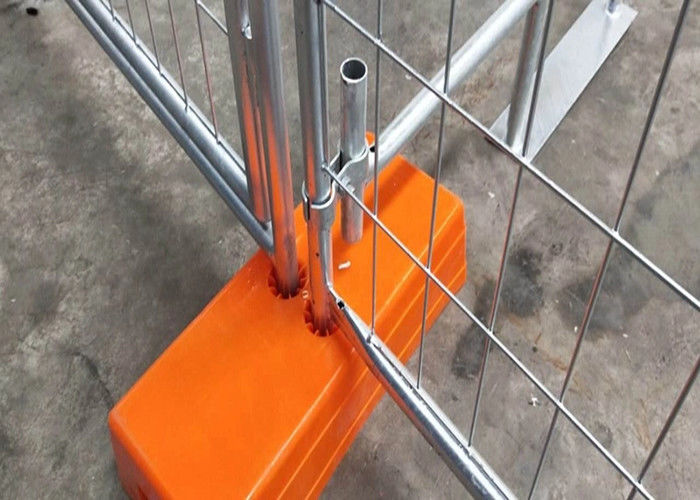

Temporary Fence Also called temporary fence brace or stay used to support the temporary fence panel in high wind area finish by hot dipped galvanized 42 microns thickness,per stay required two fence clamp and three concrete feet the additional strength to secure fence panel stand well in high wind per 4.8meter or 7.2 meter one stay live.
Temp Construction Fence Specifications
| Specifications | Normal Size |
| Panel Height | 1800mm, 2000mm, 2100mm |
| Panel Length | 2000mm, 2100mm, 2300mm, 2400mm, 2500mm |
| Frame Post | 26mm, 32mm, 38mm, 42mm, 48mm O.D |
| Infill Wire Diameter | 2.5-5mm |
| Infill Mesh Size | 50x50mm, 50x100mm, 50x200mm, 75x150mm |
| Surface Treatment | Pre-galvanized wire and tube welded; pvc or pe coated after welded |
| Specifications | Normal Size |
| Panel Height | 1800mm, 2000mm, 2100mm |
| Panel Length | 2000mm, 2100mm, 2300mm, 2400mm, 2500mm |
| Frame Post | 26mm, 32mm, 38mm, 42mm, 48mm O.D |
| Infill Wire Diameter | 2.5-5mm |
| Infill Mesh Size | 50x50mm, 50x100mm, 50x200mm, 75x150mm |
| Surface Treatment | Pre-galvanized wire and tube welded; |
| pvc or pe coated after welded | |
| The surface there types | hot dip galvanized after welded the zinc coating can reach 400g/m2 |
| pre-galvanized wire and tube welded,zinc coating can reach 40-60g/m2 | |
| pre-galvanized wire and tube welded then PVC coating. Many RAL colors for your reference | |
| Different blocks | injection molding |
| blow molding | |
| steel plate |
Temp Construction Fence Application
1. sports stadium
2. business and industry
3. factories and workshops
4. public buildings
5. construction places
6. Temporary fence to secure construction sites and private property
7. Temporary fences of residential housing sites
8. Temporary fencing and crowd control barriers for major public events, sports, concerts, festivals, gatherings
9. Temporary safety fencing for swimming pools
Temp Construction Fence Feature
• Quickly and easy installation and removable
• Cost effective
• Recycle
• Different options on color according to the using environment
Packing terms
1. Panel and plastic feet all packing with the pallet (steel pallet)
2. Panel bulk and the plastic feet packing with pallet
3. Clips packing in the carton box
