Heavy Duty Hot Dip Galvanized Cattle Horse Fence Livestock Fence Panels
Livestock Fence Panels

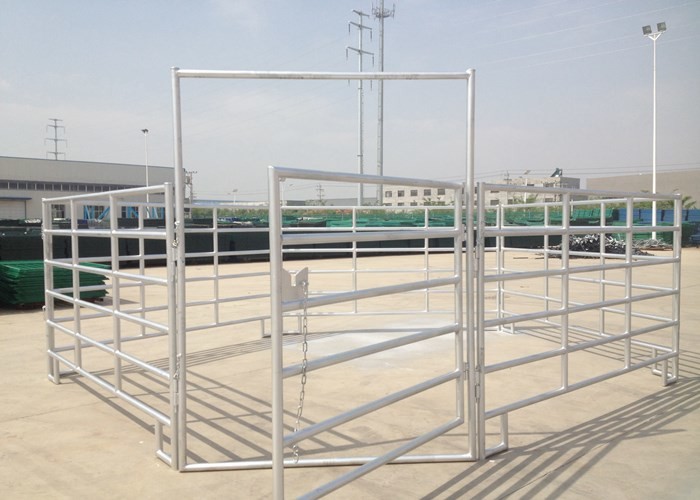

Livestock Fence Panels are made from heavy duty galvanized steel tubes, which are welded together by vertical posts and horizontal rails to form a sturdy structure. A horse arena or pen can be formed with pieces of panels jointed with accessories. Horse panels are easy to install and dismantle. They are widely used to enclose and protect horses in farmland, paddocks, arenas, rodeo, stables, etc.
Livestock Fence Panels Specifications
| Material | Carbon steel |
| Pipe thickness | 1.6mm - 1.8mm. |
| Pipe dimension |
Three types ( round pipe, square pipe, oval pipe) 1. round pipe: 32mm; 42mm. 2. square pipe: 40mm × 40mm; 50mm × 50mm. 3. oval pipe: 30mm × 60mm; 40mm × 80mm; 50mm × 100mm; 40mm × 120mm. |
| Panel size (H × L) | 1.0m × 3.0m; 1.5 × 2.0m; 1.6m × 2.5m; 1.8m × 2.1m; 1.8m × 2.1m; 1.8m × 2.4m, 1.8m × 3.0m, etc. |
| Finish | hot-dipped galvanized, power painted, PVC coated. |
| Painted color | white, gray, orange, green, red, pink, etc. |
| Bars/Rails | 3 rails, 4 rails, 5 rails, 6 rails, 7 rails. 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails, etc. |
| Packing | packed in steel pallet or in bulk. |
Livestock Fence Panels Feature
1) Robust structure
Horse panels are made from heavy duty steel tubes. They are welded by 360 degree. The sturdy structure makes horse panels stable and not easy to break.
2) Corrosion resistant and durable
The galvanized and painted coated surface make the panels anti-corrosion & rust and long service life.
3) Easy assembly and disassembly
Horse panels are jointed with pin latches or chains. The J-legs and metal base enable horse panels to stand freely without the need to dig holes on ground or lay foundations.
4) Safety guarantee
The panels are galvanized and polished without sharp edges. Thereby, the panels will not cause injury to your horses.
5) Various shapes of tubes
Horse panels tubes are available in round tubes, square tubes and oval tubes with different sizes.
6) Beautiful and attractive
Horse panels are hot-dipped galvanized or painted in gray, white, red, green and other colors, which can attract people's eyes.

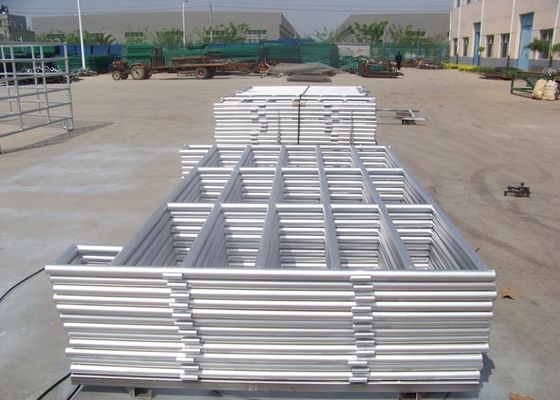

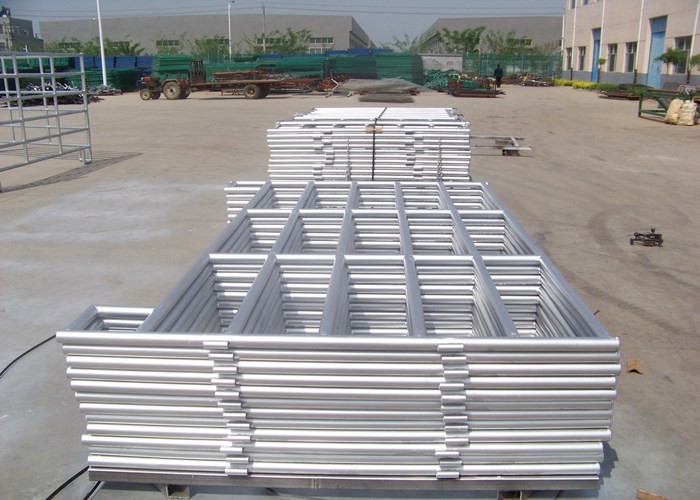

Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
