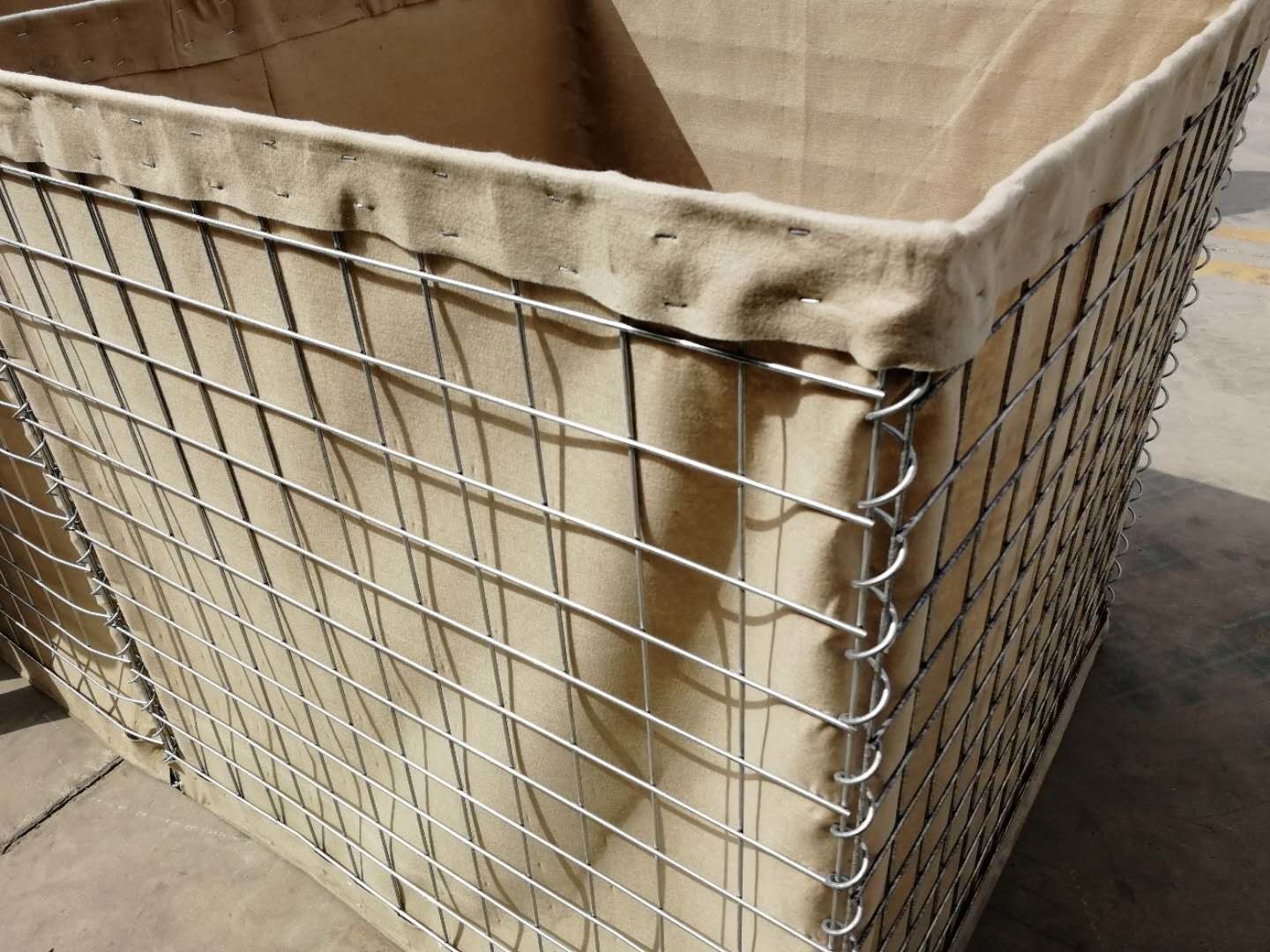

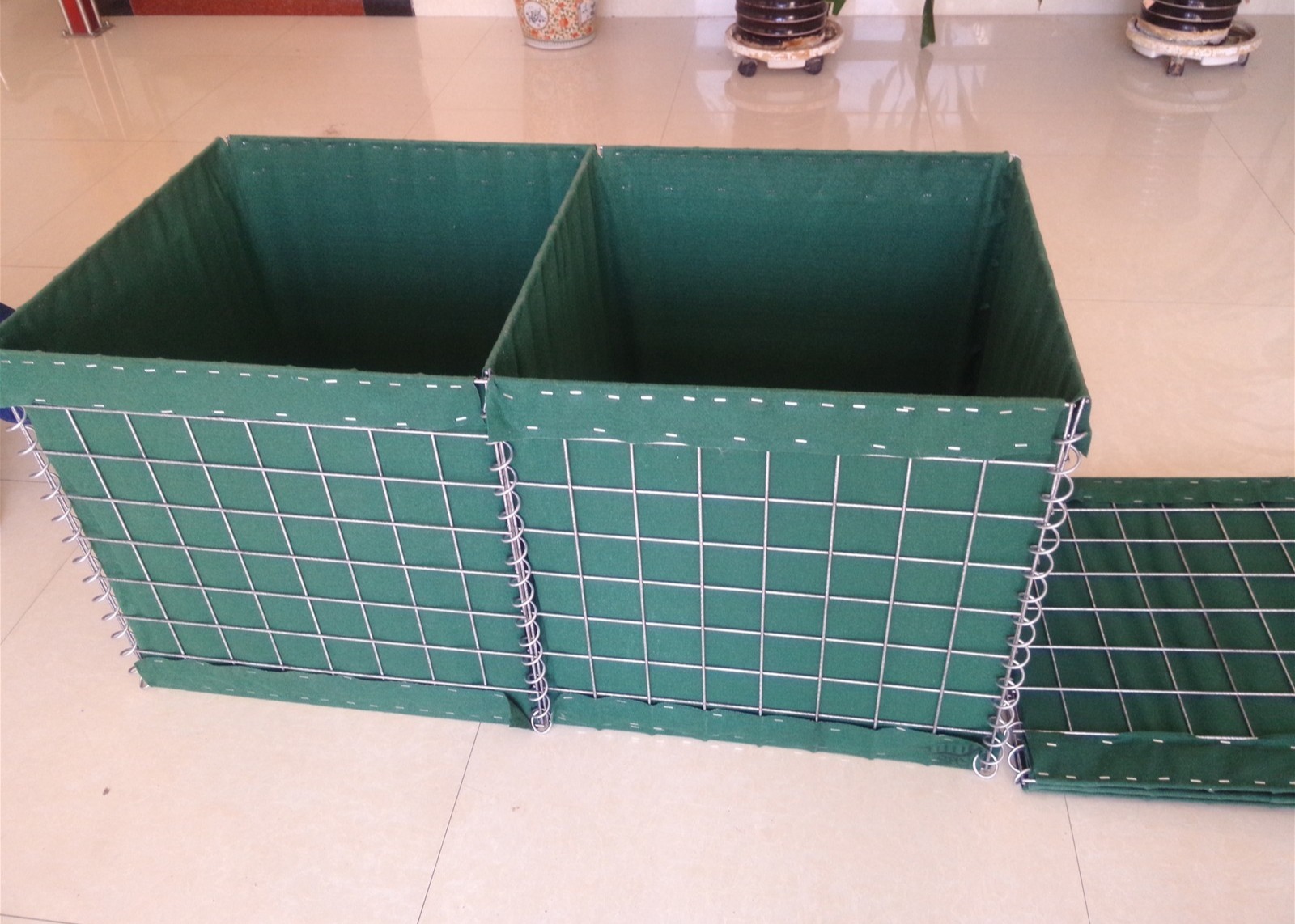

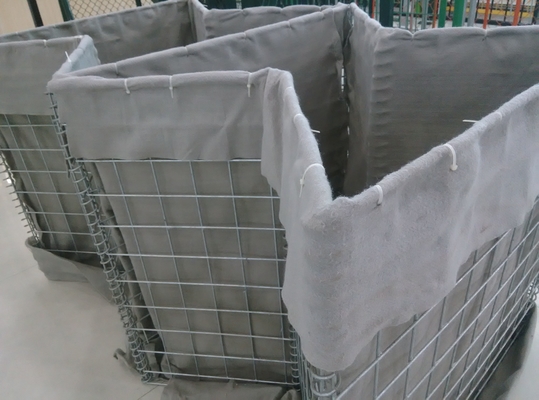

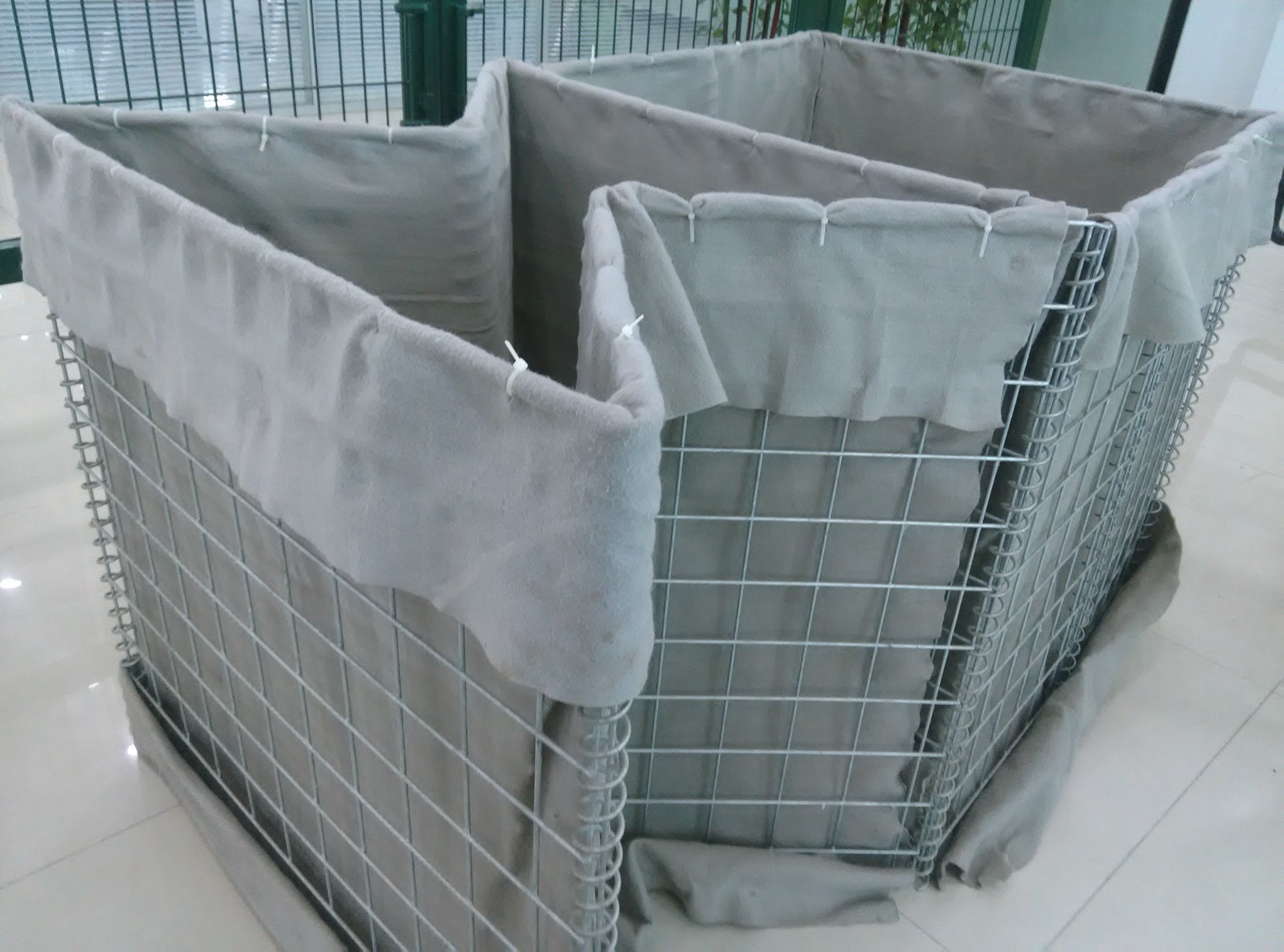

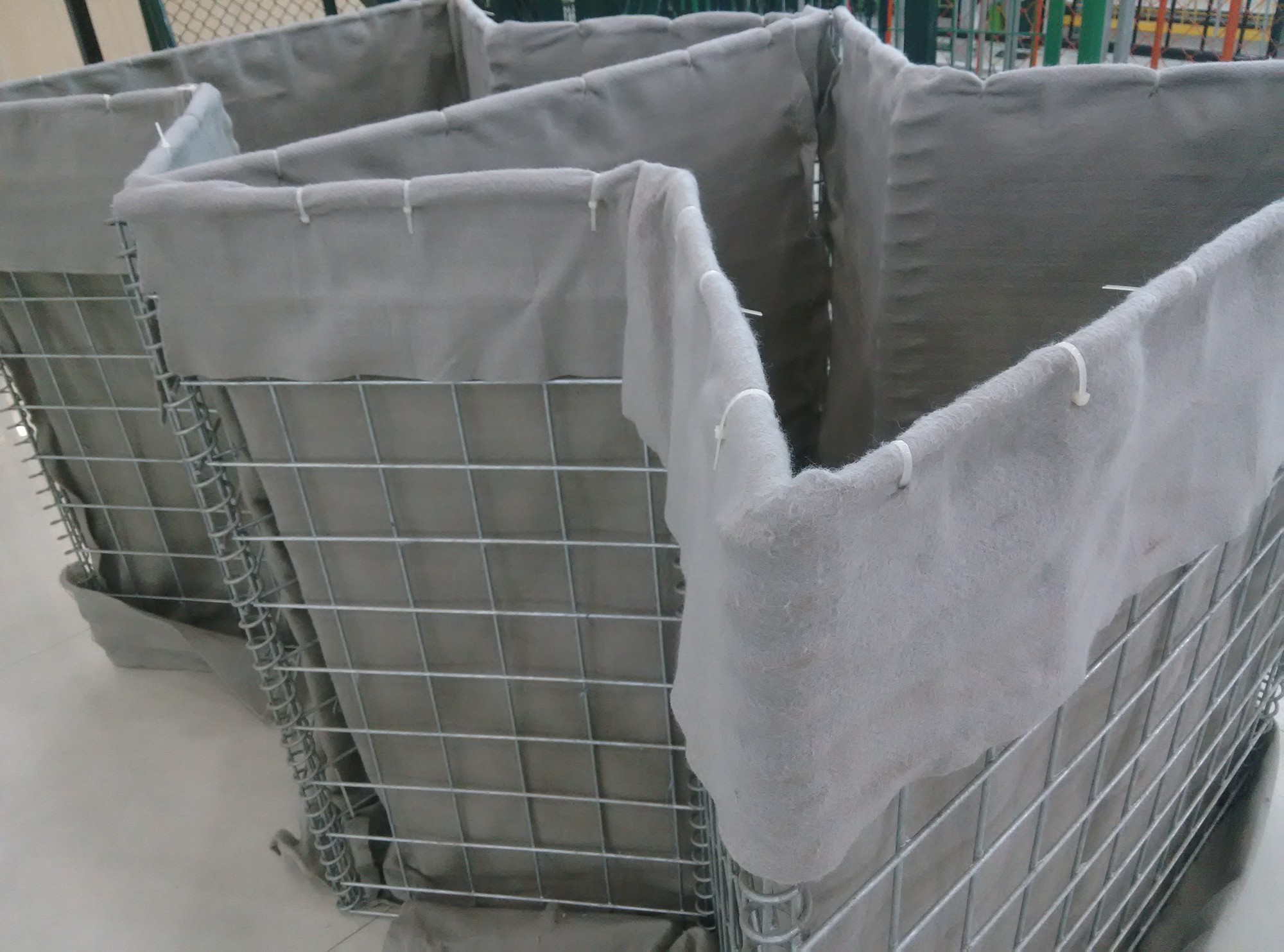

Welded Gabion wall barrier with Geotextile is also named as Welded bastion, Welded defense wall, Welded Barrier,Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment, so it is widely used for fortification and flood control.
,
Specifications
| wire diameter | Spring wire | Mesh Size |
| 4.0mm/4.5mm/5.0mm | 4.0mm/5.0mm | 76*76mm/50*100mm/100*100mm |
| surface treatment | 1.galvanized wire welded | 2. hot dip galvanized after welded |
Size
| PRODUCT ITERM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
| GM MIL1 | 54"(1.37M) | 42"(1.06M) | 329"(10M) | 5+4=9 cells |
| GM MIL2 | 24" (0.61M) | 24"(0.61M) | 4(1.22M) | 2 cells |
| GM MIL3 | 39"(1.00M) | 39"(1.00M) | 32.9"(10M) | 5+5=10 cells |
| GM MIL4 | 39"(1.00M) | 60"(1 52M) | 32" 9"(10M) | 5x2+5x2=20 cells |
| GM MIL5 | 24"(0 61M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL6 | 66"(1.68M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL7 | 87"(2. 21M) | 84"(2.13M) | 91(27.74M) | 5+4+4=13 cells |
| GM MIL8 | 54"(1.37M) | 48"(1.22M) | 32: 9"(10M) | 5+4=9 cells |
| GM MIL9 | 39"(1.00M) | 30'"(0.76M) | 30(9.14M) | 6+6=12 cells |
| GM MIL10 | 87"(2. 21M) | 60'"(1.52M) | 100(30.50M) | 5+5+5+5=20 cells |
| GM MIL11 | 48"1.22M) | 12"(0.30M) | 4(1.22M) | 2 cells |
| GM MIL12 | 84"(2.13M) | 42"(1. 06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
| GM MIL19 | 108"(2.74M) | 42"(1. 06M) | 10'5(3. 18M) | 6 cells |
Material: low carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm, etc
Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m, etc
Geotextile : In heavy duty non-woven polypropylene.

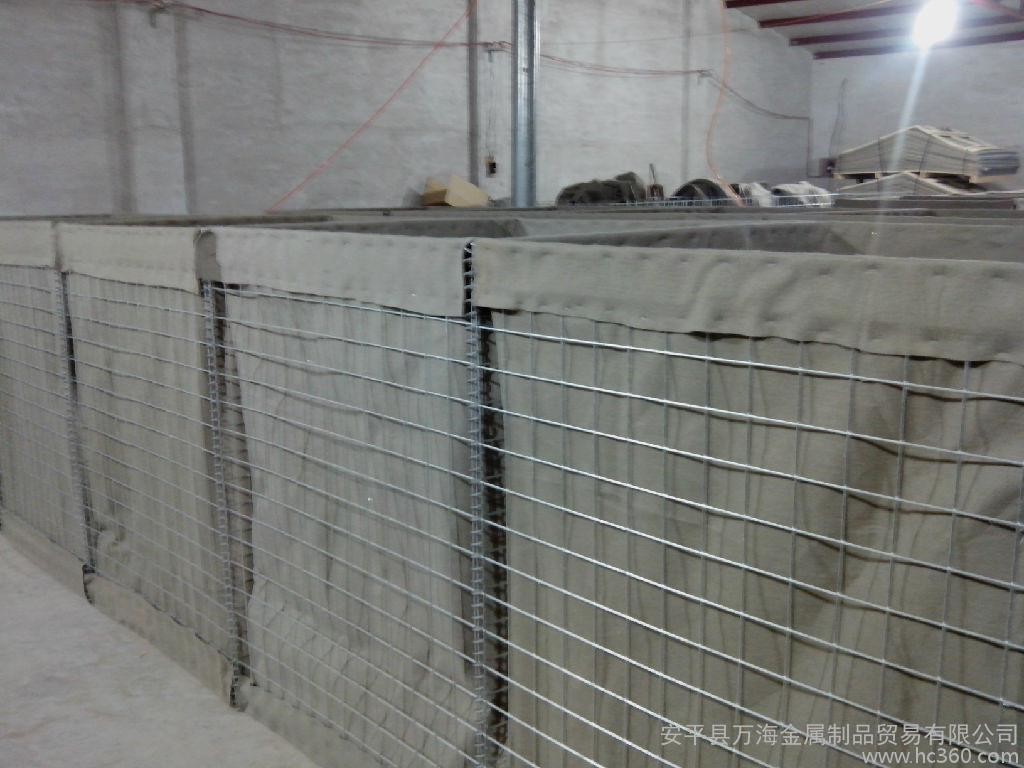

HESCO defensive barriers , also named as Hesco bastion, Hesco defense wall,Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall,Wire mesh gabion box, Stone cage ,military hesco barrier, hesco barrier wall etc. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against . it is widely used for military fortification and flood control.

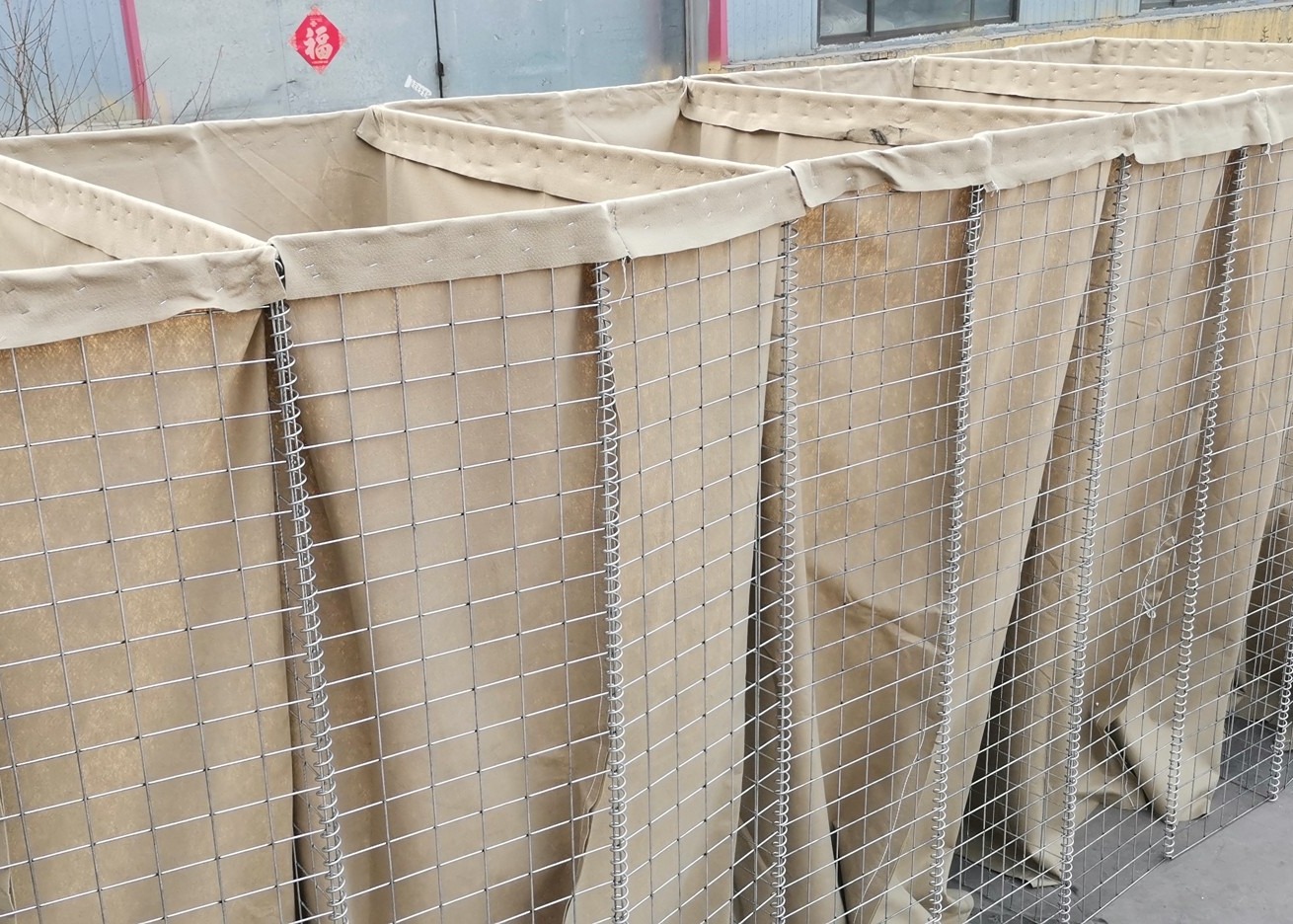

The Gabion Barrier Bastion Sand Wall come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Whether used as a protective barrier or to define boundaries Gabion Barrier Bastion Sand Wall have been employed to safeguard equipment, facilities, vehicles, personnel and critical assets in a variety of operations such as , peacekeeping, humanitarian and civilian.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
