Hesco Barriers Blast Wall Introduction
Defensive barriers are also known as Gabion Blast Wall, Defensive Barrier, Defensive Bastion, etc. It is a prefabricated multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in flood control.

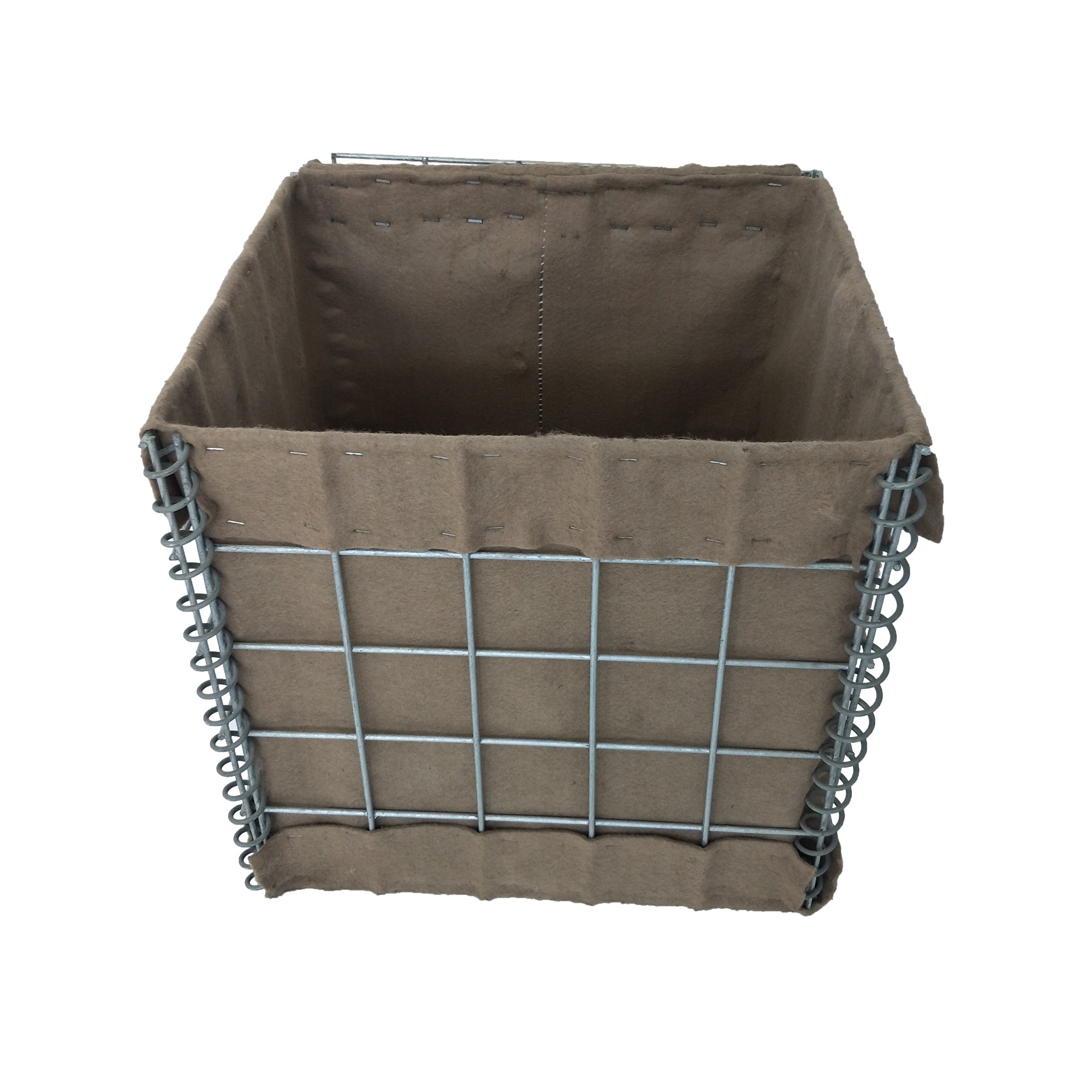

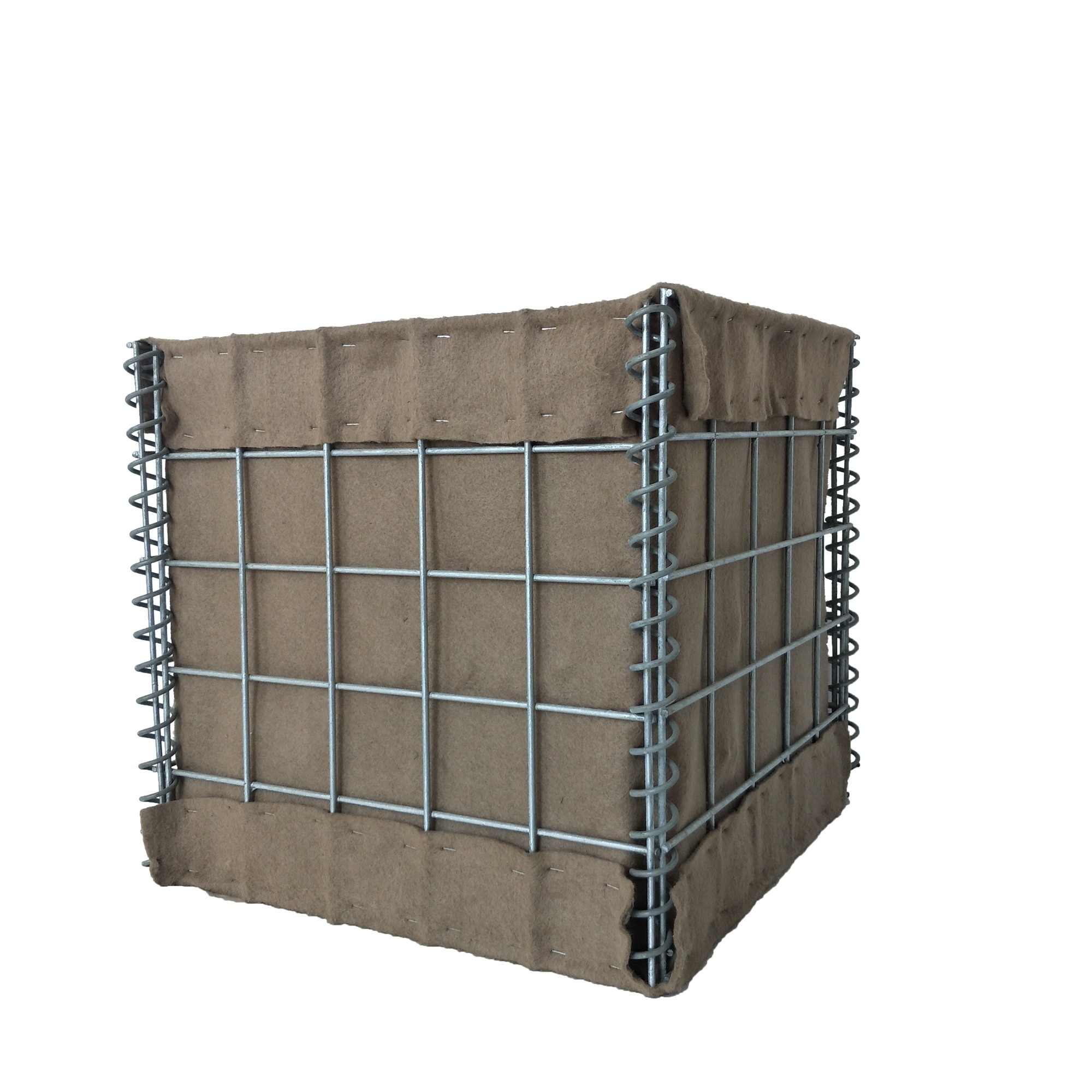

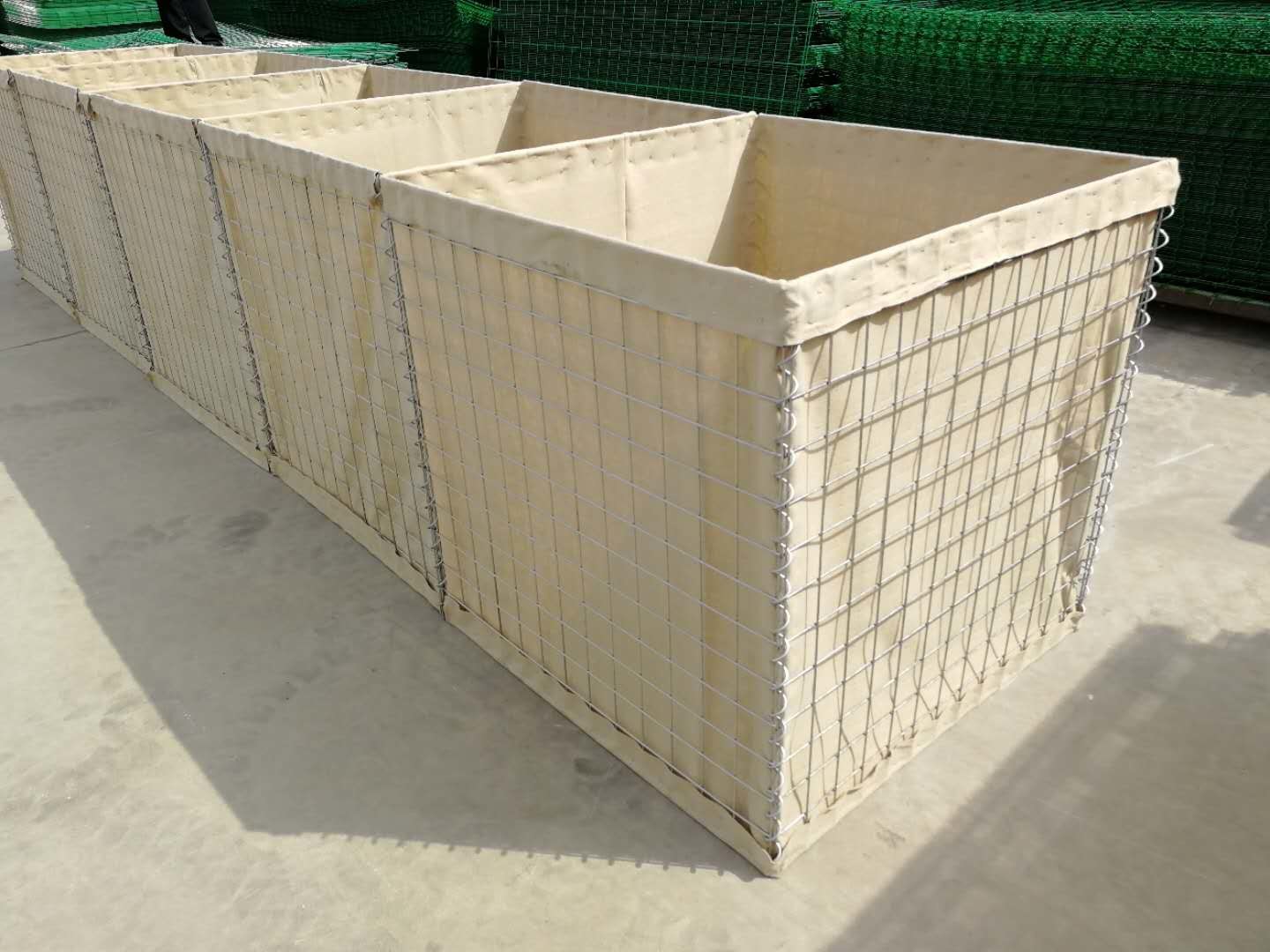

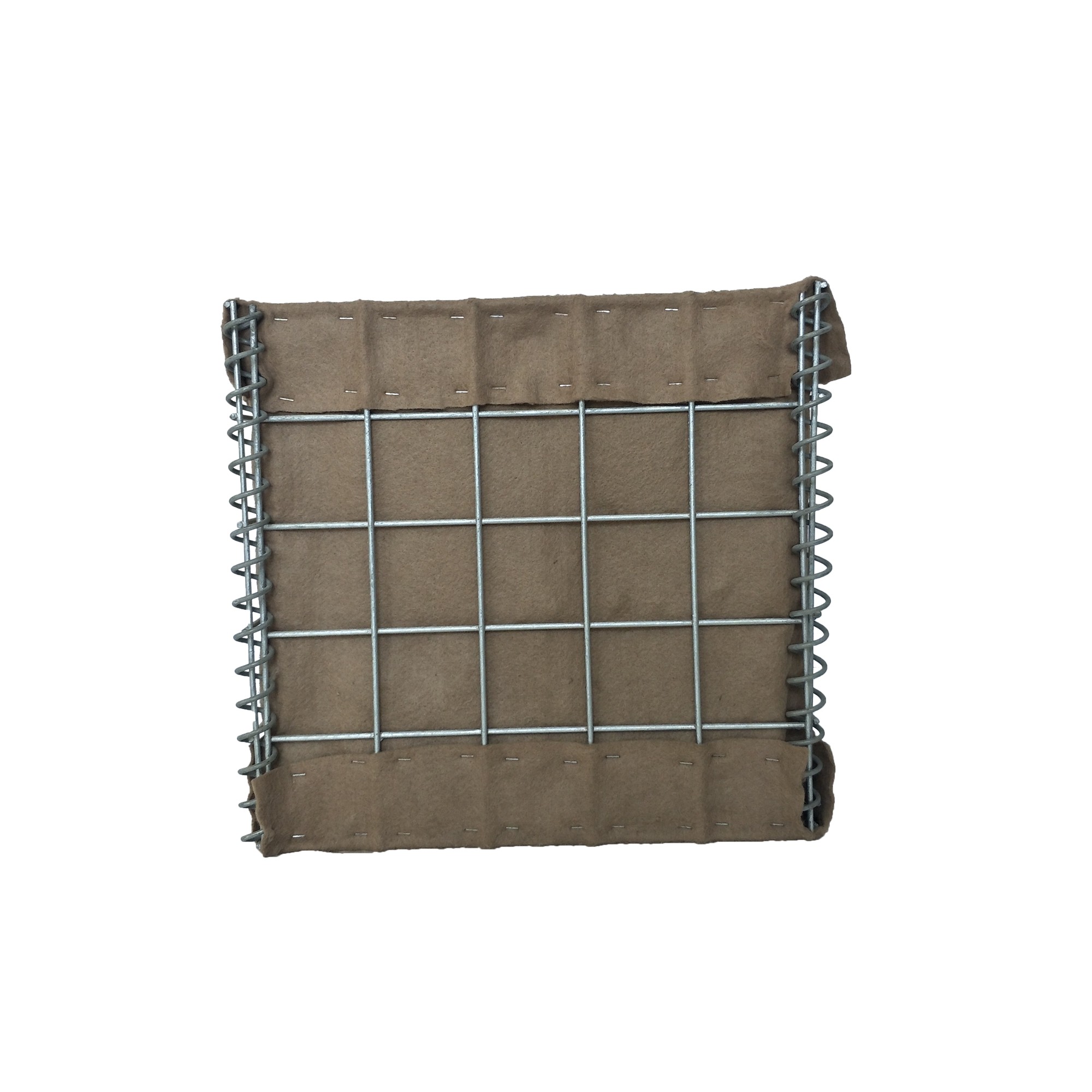

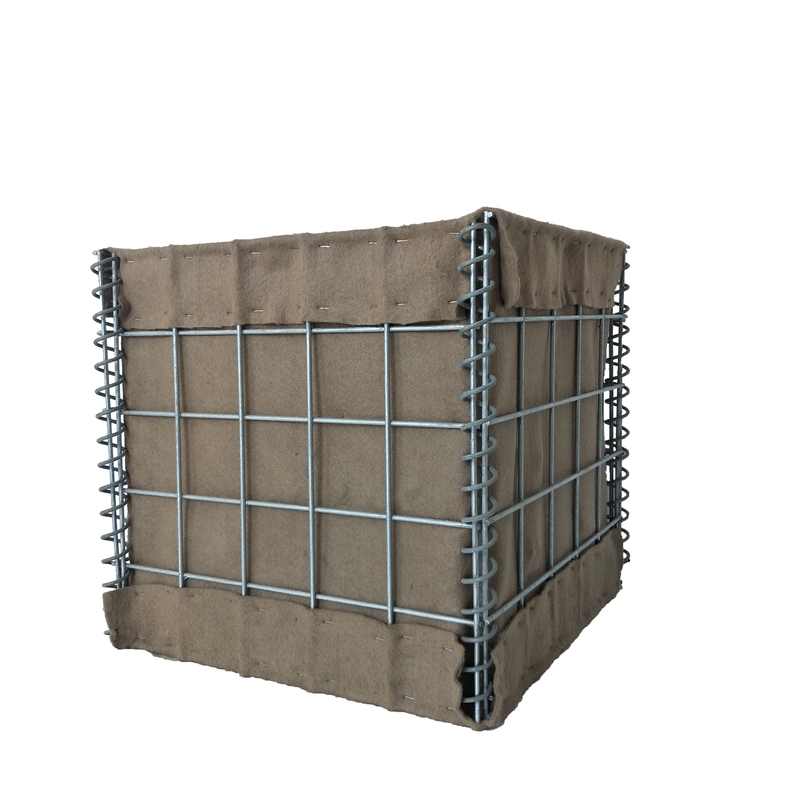

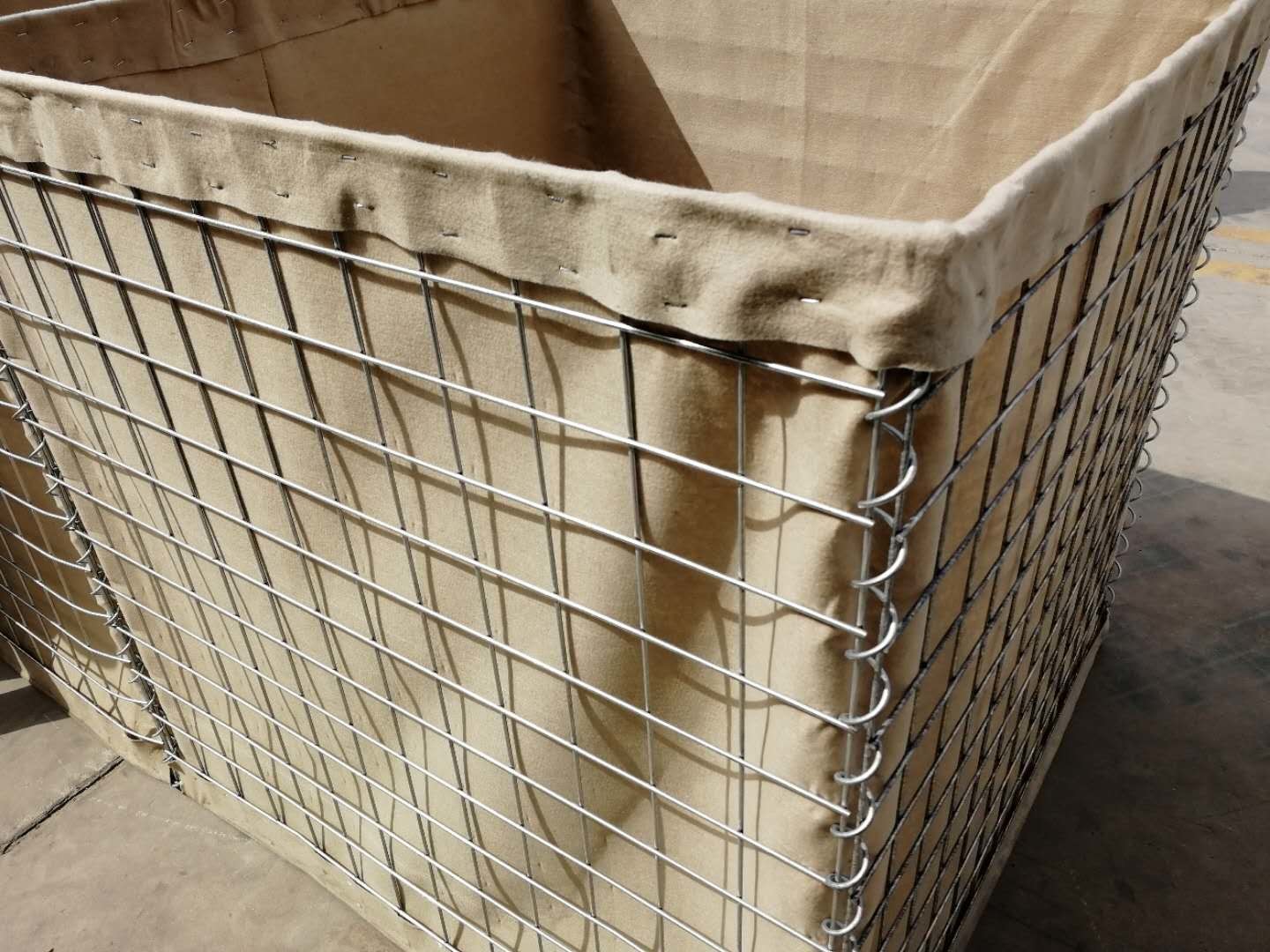

Blast Wall is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile.Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely use in military to protect safety.
,
Specifications
| wire diameter | Spring wire | Mesh Size |
| 4.0mm/4.5mm/5.0mm | 4.0mm/5.0mm | 76*76mm/50*100mm/100*100mm |
| surface treatment | 1.galvanized wire welded | 2. hot dip galvanized after welded |
Size
| PRODUCT ITERM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
| GM MIL1 | 54"(1.37M) | 42"(1.06M) | 329"(10M) | 5+4=9 cells |
| GM MIL2 | 24" (0.61M) | 24"(0.61M) | 4(1.22M) | 2 cells |
| GM MIL3 | 39"(1.00M) | 39"(1.00M) | 32.9"(10M) | 5+5=10 cells |
| GM MIL4 | 39"(1.00M) | 60"(1 52M) | 32" 9"(10M) | 5x2+5x2=20 cells |
| GM MIL5 | 24"(0 61M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL6 | 66"(1.68M) | 24"(0. 61M) | 10'(3. 05M) | 5cells |
| GM MIL7 | 87"(2. 21M) | 84"(2.13M) | 91(27.74M) | 5+4+4=13 cells |
| GM MIL8 | 54"(1.37M) | 48"(1.22M) | 32: 9"(10M) | 5+4=9 cells |
| GM MIL9 | 39"(1.00M) | 30'"(0.76M) | 30(9.14M) | 6+6=12 cells |
| GM MIL10 | 87"(2. 21M) | 60'"(1.52M) | 100(30.50M) | 5+5+5+5=20 cells |
| GM MIL11 | 48"1.22M) | 12"(0.30M) | 4(1.22M) | 2 cells |
| GM MIL12 | 84"(2.13M) | 42"(1. 06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
| GM MIL19 | 108"(2.74M) | 42"(1. 06M) | 10'5(3. 18M) | 6 cells |
Hesco Barriers Blast Wall Feature
HESCO defensive barriers , also named as Hesco bastion, Hesco defense wall,Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall,Wire mesh gabion box, Stone cage ,military hesco barrier, hesco barrier wall etc. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against . it is widely used for military fortification and flood control.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
