For chain link fence:
We can supply galvanized silver chain link fence,PVC coated color chain link fence:black chain link fence,green chain link fence.
Chain Link Fence Specification
| Chain Link Fence | ||||||||
| material | galvanized wire, PVC coated wire | |||||||
| opening | 1" | 1.5" | 2" | 2.25" | 2.4" | 2.5" | 3" | 4" |
| 25mm | 40mm | 50mm | 55mm | 60mm | 65mm | 76mm | 100mm | |
| wire diameter | 14#-6# | |||||||
| 2.00mm-5.00mm | ||||||||
| Fence height | 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3m etc | |||||||
| Coated color | Black, Dark green, Blue, Sliver etc | |||||||
| Round fence pipe | OD48mm, thickness 2mm | |||||||
| Top rail pipe | OD32mm, thickness 1.2mm, 1.5mm etc | |||||||
Chain Link Fence Application
(1)Chain link fence with top rail;
Used for private houses, park and gardens;
(2)Chain link fence top with barbed wire;
Used for airport or farm fence;
(3)Chain link fence top without top rail
Used for goat fence and Mountain forest fence;

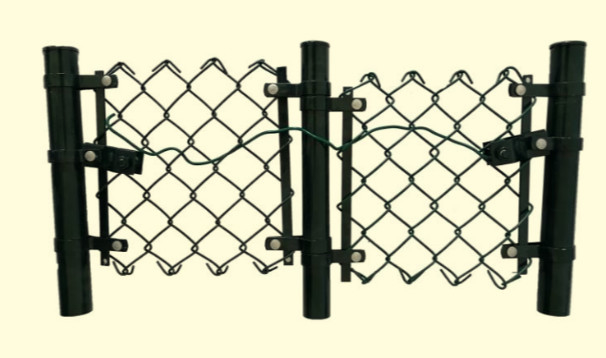

(4) Chain Link Fence with frame
Used for facility protection, Zoo fence, stadium fence, temporary fence
Chain link has quite a few benefits including:
Price: Chain link is one of the most affordable fencing options on the market.
Easy installation: Many homeowners have been able to install a chain link fence on their own without difficulty.
Security: Chain link is not as secure as a solid slab of steel but you are able to see through it. In a lot of situations, being able to see what is happening on the other side is just as important as keeping things out.
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
| 40X40mm 50X50mm 60X60mm 65X65mm 75X75mm |
2.0mm - 4.8mm |
Galvanized and PVC coated Or Hot dipped galvanized |
10m 15m 18m 20m 25m 30m |
1200mm |
| 1500mm | ||||
| 1800mm | ||||
| 2000mm | ||||
| 2100mm | ||||
| 2400mm | ||||
| 2500mm | ||||
| 3000mm | ||||
| 3600mm |
ProfileWall ThicknessSurface TreatmentLengthRain hatΦ601.50mm
-
5.20mmGalvanized and
Electrostatic polyester powder
Coated or hot dipped galvanizedOn the basis of panel heightMetalΦ75
Packing terms
(1) Rolls chain link fence wrap woven bag at top and bottom, then by pallets;
(2) Framework and gate in crate;
(3) Framework and gate are directly loaded into the containers.
(4) As your kindly special requirement , to guarantee goods are good arrive to your place
The Advantages of we have:
1. More than 10 Experiences supplier
2. We are madeinchina trade assurance, factory recognized By "CE/ISO9001" and so on.
3.24 service for you, all the question will be dealed Anytime.
4. Stable quality: Coming from good material
5. Low price: No cheapest but the lowest at the best Quality.
6. Good service: Satisfactory service before and after Sale.
7. Delievey time: 10-20 days for mass production
