Easily Assembled 6ft Height PVC Coated Security Double Wire Mesh Fencing
Double Wire Mesh Fencing Installation
1) It do not need any fixed parts. It is installed in a way of sequential assembly, which saves lots of time and improves efficiency.
2) Each part with superior quality, and 10-year anti-corrosion to make the fence go well.
3) It is a perfect system to work with gate in a unique appearance.
4) Professional install drawing are available for your easy understanding

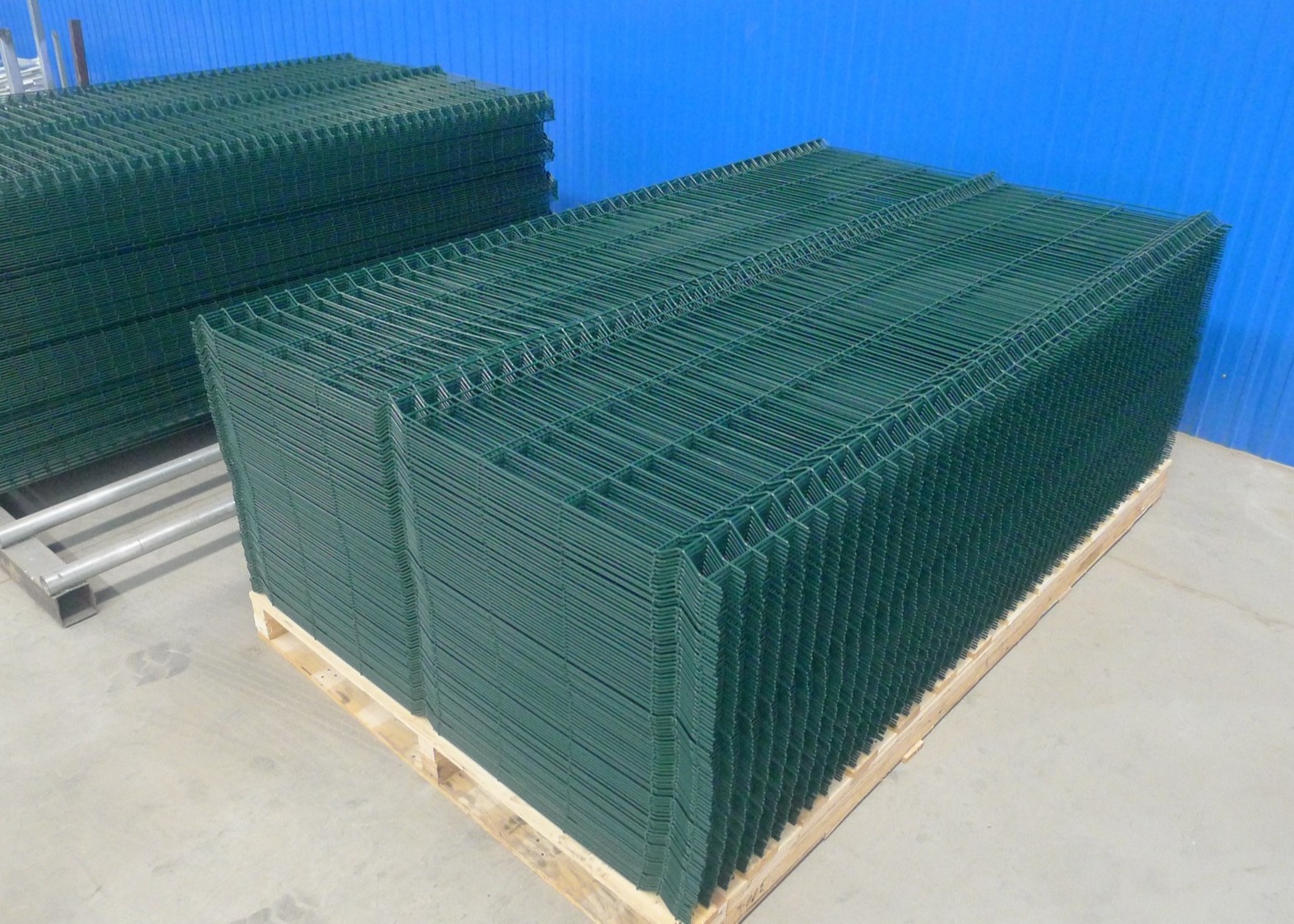

Double Wire Mesh Fencing Packing:
1) Pallet packing
2) The entire pallet will be wrapped by stretch film to ensure the tidiness of the goods and prevent the pallet from bumping and scratching
3) Accessories:
Clips and screws are packed by sets, plastic film + carton box.
Double Wire Mesh Fencing Specifications:
| Height xWidth (mm) |
Mesh Size (mm) |
Wire Diameter | Post Height (mm) |
|||
| Wire Dia(mm) | Wire Dia(mm) | Wire Dia (mm) | ||||
| 630X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1100 | |
| 830X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1300 | |
| 1030X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1500 | |
| 1230X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1700 | |
| 1430X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1900 | |
| 1630X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2100 | |
| 1830X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2400 | |
| 2030X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2600 | |
| 2230X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2800 | |
| 2430X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 3000 | |
| The Specification of the Double Wire Mesh Fence Post | ||||||
| Post | Size | Thickness | ||||
| Square post | 50*50mm 60*60mm 80*80mm 100*100mm | 1.5mm 2mm 2.5mm | ||||
| Rectangular post | 40*60mm 60*80mm 60*120mm | 1.5mm 2mm 2.5mm | ||||
| Peach post | 50*70mm 60*90mm 70*100mm | 1.5mm 2mm 2.5mm | ||||
