6ft Height 50*200mm Mesh Welded Wire Security Double Wire Mesh Fencing

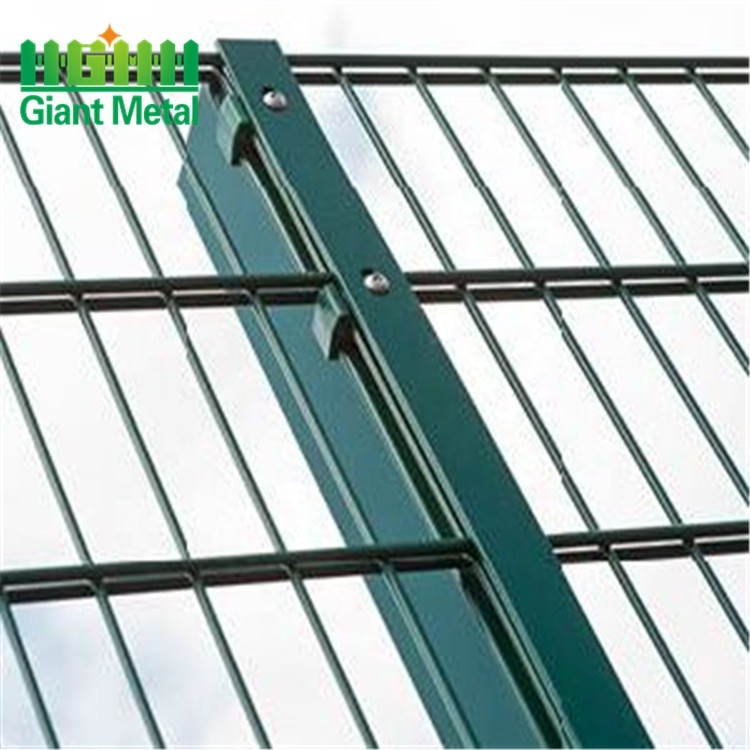

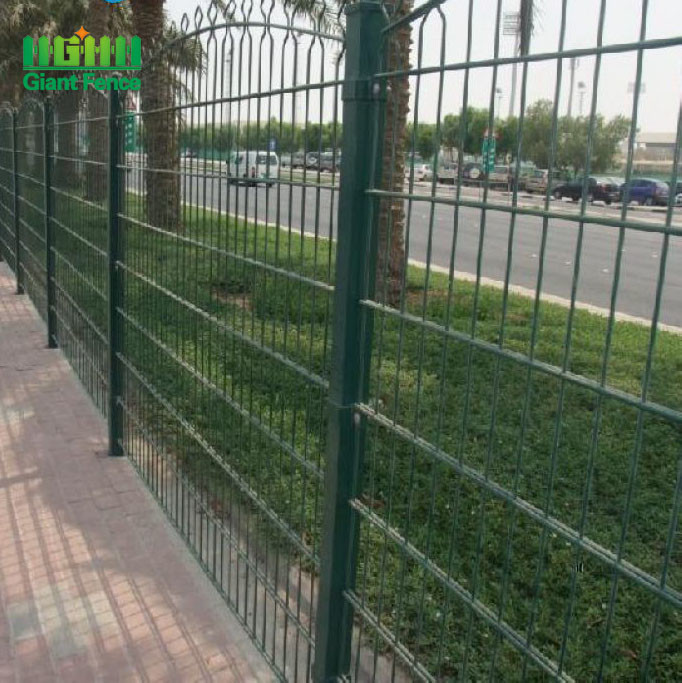

Double Wire Mesh Fencing Details
1: Double wire mesh fence are also named as double rod fence panel or double rod grid fencing. It has refining deign, plain panel and installs convenient.
2: Double wire mesh fence material: low carbon steel wire and galvanized wire
3: Double wire mesh fence surface treatment: hot galvanized,plastic spraying or plastic dipping.
Double Wire Mesh Fencing Specifications:
| Height xWidth (mm) |
Mesh Size (mm) |
Wire Diameter | Post Height (mm) |
|||
| Wire Dia(mm) | Wire Dia(mm) | Wire Dia (mm) | ||||
| 630X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1100 | |
| 830X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1300 | |
| 1030X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1500 | |
| 1230X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1700 | |
| 1430X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 1900 | |
| 1630X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2100 | |
| 1830X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2400 | |
| 2030X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2600 | |
| 2230X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 2800 | |
| 2430X2500 | 50X200 | 8X2+6 | 6X2+5 | 6X2+4 | 3000 | |

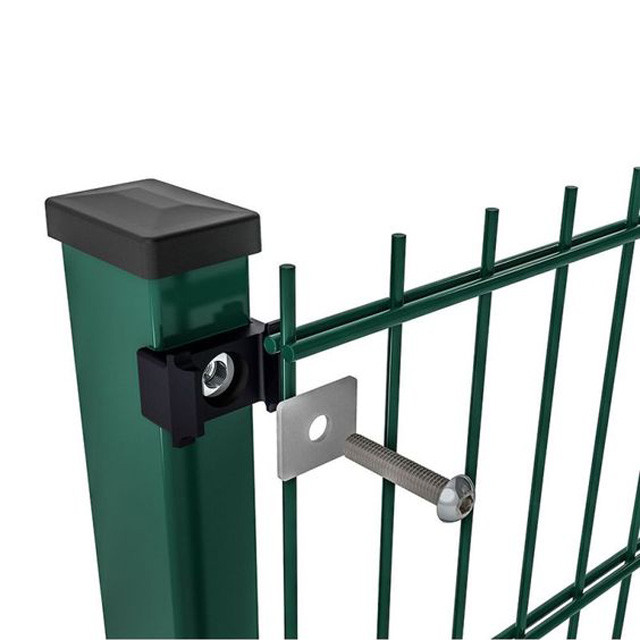

| The Specification of the Double Wire Mesh Fence Post | ||||||
| Post | Size | Thickness | ||||
| Square post | 50*50mm 60*60mm 80*80mm 100*100mm | 1.5mm 2mm 2.5mm | ||||
| Rectangular post | 40*60mm 60*80mm 60*120mm | 1.5mm 2mm 2.5mm | ||||
| Peach post | 50*70mm 60*90mm 70*100mm | 1.5mm 2mm 2.5mm | ||||
