Factory For Sale High Quality Hot Dip Galvanized Hesco Barrier Wall

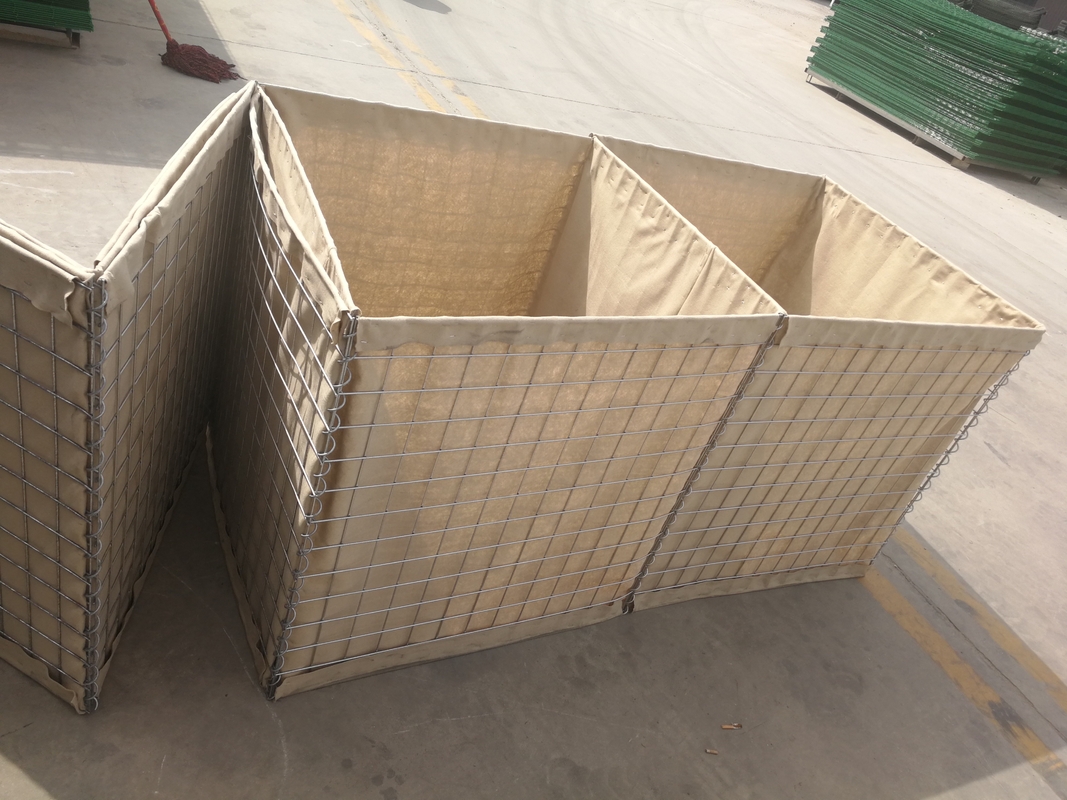

Hesco Barriers Blast Wall Introduction
Welded Gabion military sand wall barrier with Geotextile is also named as Welded bastion, Welded defense wall, Welded Barrier,Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment, so it is widely used for military fortification and flood control.
Hesco Barriers Blast Wall Specifications
|
Product Name
|
Hesco Barrier
|
||
|
Product Type
|
Welded mesh
|
||
|
Material
|
Galvanized steel wire or Galfan/zinc-5%aluminum wire
|
||
|
Wire Diameter
|
4.0-5.0mm
|
||
|
Geotextile
|
250g-400g
|
||
|
Geotextile colour
|
Sand clolor, Brown, Gray,and Military Green.
|
||
|
Mesh hole
|
76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 80mm× 80mm, 100mm×100mm
|
||
|
Model
|
Height(M)
|
Width(M)
|
Length(M)
|
|
SJ-1(Mil 1)
|
1.37
|
1.06
|
10
|
|
SJ-2(Mil 2)
|
0.61
|
0.61
|
1.21
|
|
SJ-3(Mil 3)
|
1.0
|
1.0
|
10
|
|
SJ-4(Mil 4)
|
1.0
|
1.5
|
10
|
|
SJ-5(Mil 5)
|
0.61
|
0.61
|
3.05
|
|
SJ-6(Mil 6)
|
1.68
|
0.61
|
3.05
|
|
SJ-7(Mil 7)
|
2.21
|
2.13
|
27.74
|
|
SJ-8(Mil 8)
|
1.37
|
1.22
|
10
|
|
SJ-9(Mil 9)
|
1.0
|
0.76
|
9.14
|
|
SJ-10(Mil 10)
|
2.12
|
1.52
|
30.5
|
Hesco Barriers Blast Wall Feature
Military protection
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
