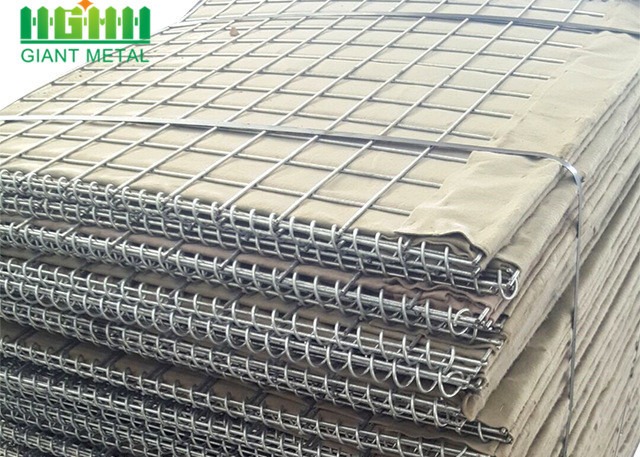

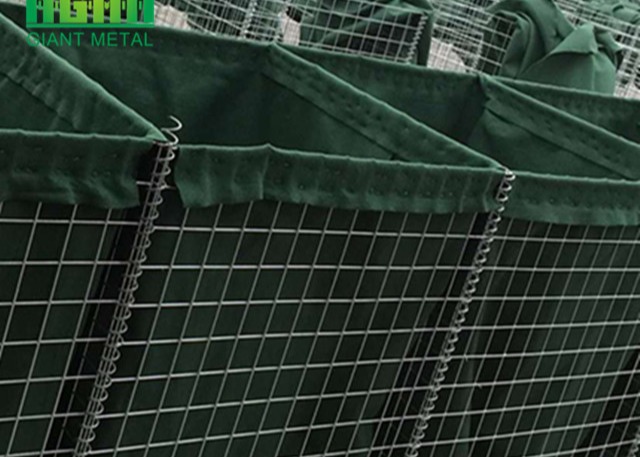

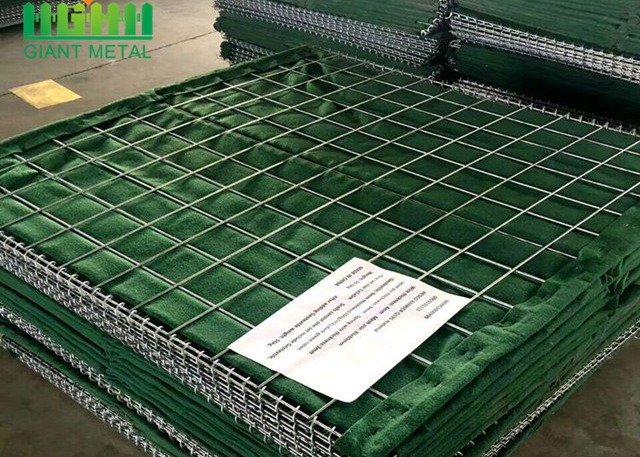

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.
Hesco Barriers Blast Wall Specifications
|
Wire diameter
|
3.85mm,4mm,5mm etc
|
|||
|
Mesh Size
|
75mmx75mm etc
|
|||
|
Spring wire diameter
|
3mm,4mm,5mm etc
|
|||
|
Panel Finish
|
Hot dipped galvanized or Galfan coated
|
|||
|
Geotextile
|
Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
|
|||
|
Packing Wrapped with shrink film or packed in pallet
|
||||
|
Technical Specification for Geotextile Fabric
|
||||
|
Color
|
Beige sand,Olive green,Grey
|
|||
|
Mass(g/sqm)
|
250,300,350
|
|||
|
Tensile strength
|
16kN
|
|||
|
Tear Strength
|
0.42kN
|
|||
|
CBR Puncture
|
3.1kN
|
|||
|
UV strength retention
ASTM D4355
|
50% at 500hours
(5 years use life in common environment) |
|||
|
70% at 500hours
(10 years use life in common environment) |
||||
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
