Small Opening 358 Rigid Preson Mesh Anti Climb High Security Wire Wall 358 Safer Fence
High Security Fencing Instruction
358 security fence is also called anti climb fence which is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. 358 security fence has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our 358 security fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework is very strong resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the greatest relaxation and secured protection from inside of your own.
High Security Fencing Specifications
|
mesh panel height |
0.9m-5.2m |
|
mesh panel width |
2m,2.2m,2.5m,3m |
|
hole opening |
12.7mmx76.2mm(1/2''x3'') |
|
wire thickness |
3mm,4mm,5mm |
|
material |
low carbon steel wire,galvanized wire |
|
finished |
electric galvanized,hot dipped galvanized,polyester painting |
|
polyester painting color |
any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
|
curves |
on request |
|
C post |
62mmx83mmx3mm |
|
round post |
outside diameter:80mmx3mm |
|
rectangular post |
60mmx60mmx3mm,80mmx80mmx3mm, 60mmx120mmx3mm , 100mm x 100mm x 3mm |
|
post length |
on request(normal 2.3mm-4m) |
|
material |
square steel pipe,round steel pipe,C type steel |
|
finishied |
electric galvanized,hot dipped galvanized,pvc coated |
|
polyester painting color |
any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
High Security Fencing Application
The mesh is small and can prevent climbing to the greatest extent. It is mainly used in military airport security forces, prisons, light rails, intercity trains and other important isolation measures.

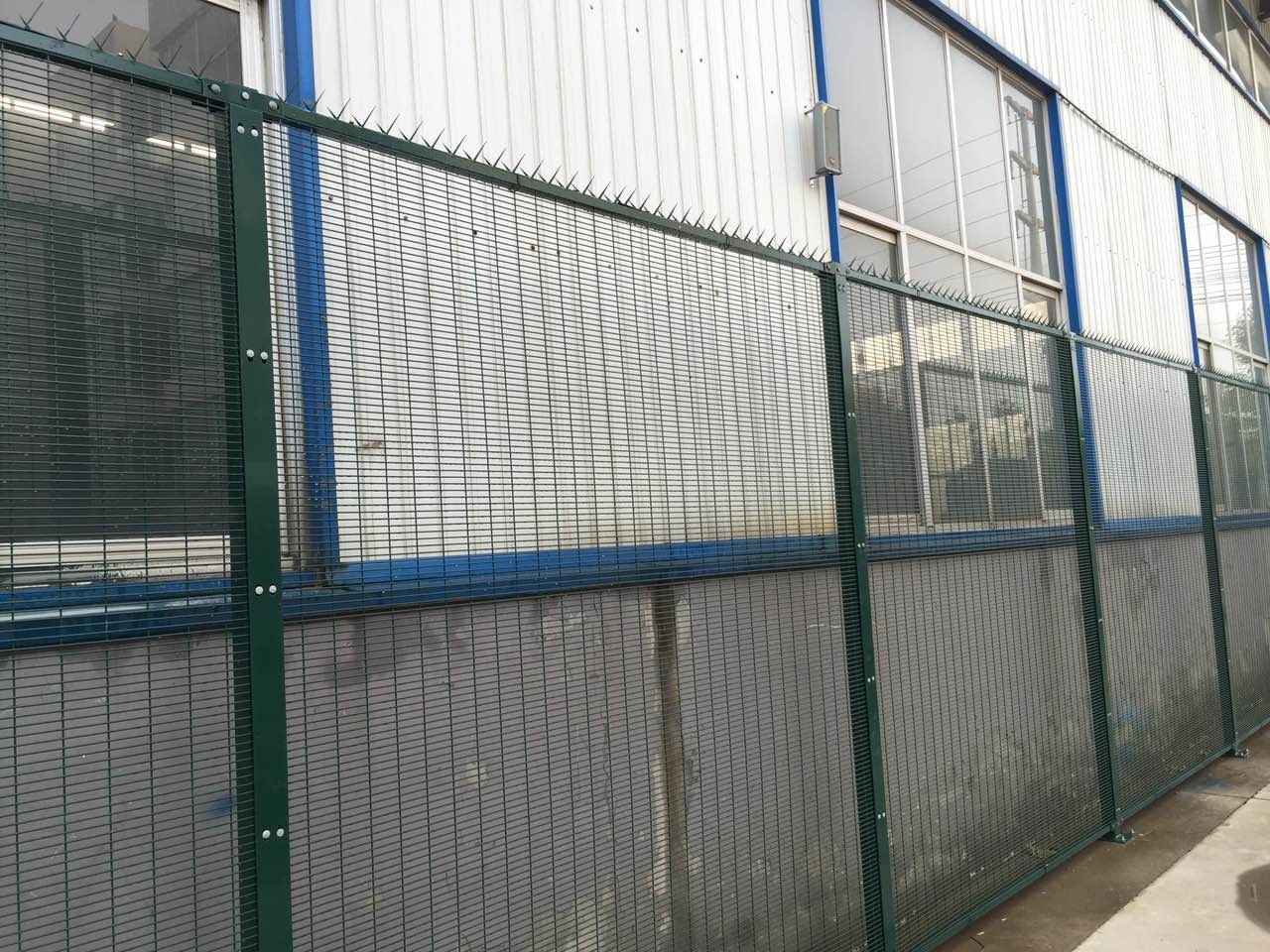

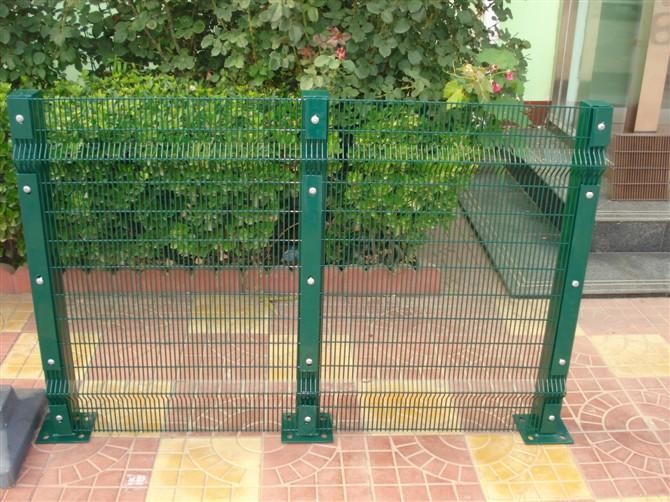

High Security Fencing Detail
358 High Security Fence Package
For Panel: In steel or wooden pallet and then wrapped with carboard plate and wrapped with plastic film
For Post: In steel or wooden pallet and then wrapped with carboard plate and wrapped with plastic film
For accessores: With carton box
