Explosion Proof Hesco Barrier Wall For Blast Mitigation

50 sets
MOQ
Negotiable
Price
Explosion Proof Hesco Barrier Wall For Blast Mitigation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hesco Barrier Blast Wall
Material: Steel
Fabric Color: Brown/green
Wire Diameter: 4.0mm,4.5mm,5.0mm
Mesh Size: 76*76mm/75*150mm/100*100mm
Shape: Round/square Shape/ Rectangle
Surface: Galvanized Wire Welded/Galfan Wire Welded/hot Dip Galvanized After Welded
Packing: Pallet
Size: Mil 1B/1G -Mil 10B/10G
High Light:

explosion proof hesco barrier wall

,

hesco barrier wall for blast mitigation

,

blast mitigation hesco barrier wall

Basic Infomation
Place of Origin: China
Brand Name: Giant Fence
Certification: ISO9001:2008
Model Number: GF129
Payment & Shipping Terms
Packaging Details: 1. packing in the pallet 2. bulk in the container
Delivery Time: 20-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000meter per week
Product Description

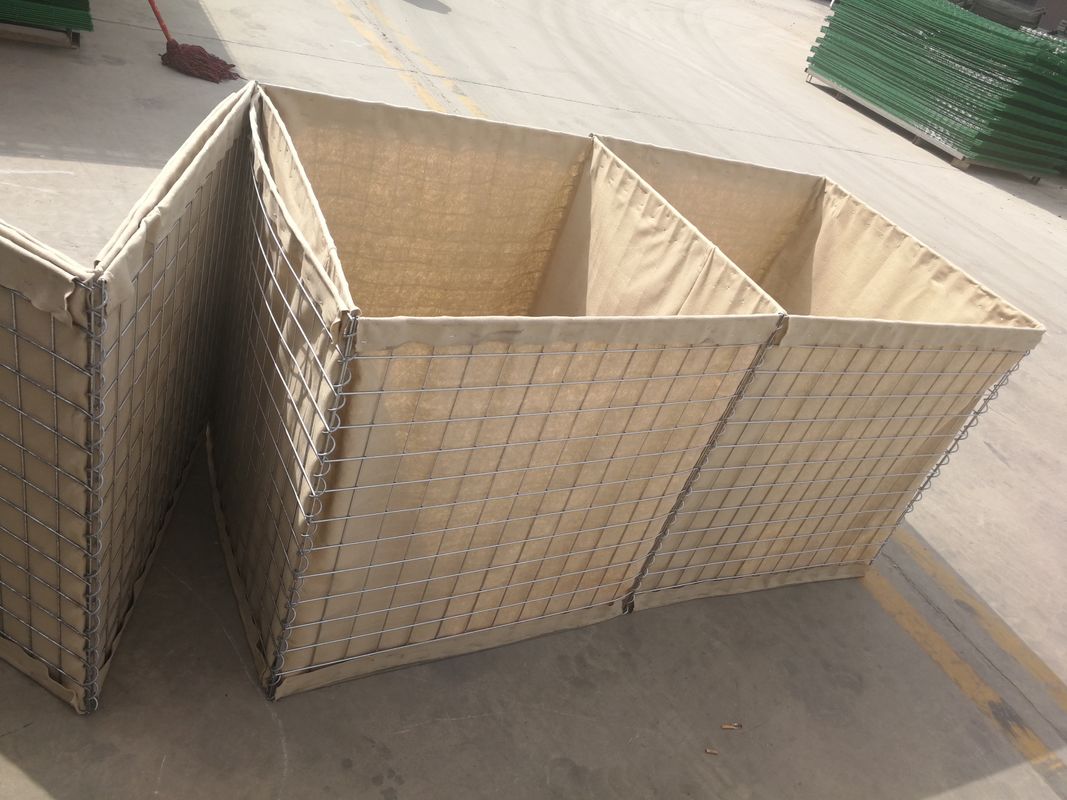

Hesco Barrier Explosion Proof Wall Filled With Sand Used for Blast Mitigation


Hesco Barrier Explosion Proof Wall is one modern welded gabion basket which can be filled with sand, earth, gravel, aggregates, rubble, bricks, even some fine sediment, etc.

Hesco defensive barriers are widely used for explosion-proof against attacks from rifle bullets, shell fragments, rocket propelled grenade round, especially used in Afghanistan, Syria, Iraq, Iran, Jordan, etc. It is also used for flood control in cities, so its another name is hesco flood control barrier.

In both military sand security applications the military barrier affords protection from small arms fire right up to VBIEDs and artillery. PeiGuan's military defensive barriers are mainly used for Homeland Security applications providing critical infrastructure protection including perimeter security, vehicle barriers and inspection lanes as well as temporary or permanent barriers.



Hesco Barriers Blast Wall Specifications

PRODUCT ITERM NO.
HEIGHT
WIDTH
LENGTH
CELLS NO.
PG MIL1
54''(1.37M)
42''(1.06M)
32'9''(10M)
5+4=9 cells
PG MIL2
24'' (0.61M)
24''(0.61M)
4'(1.22M)
2 cells
PG MIL3
39''(1.00M)
39''(1.00M)
32'.9''(10M)
5+5=10 cells
PG MIL4
39''(1.00M)
60''(1.52M)
32'.9''(10M)
5×2+5×2=20 cells
PG MIL5
24''(0.61M)
24''(0.61M)
10'(3.05M)
5 cells
PG MIL6
66''(1.68M)
24''(0.61M)
10'(3.05M)
5 cells
PG MIL7
87''(2.21M)
84''(2.13M)
91'(27.74M)
5+4+4=13 cells
PG MIL8
54''(1.37M)
48''(1.22M)
32'.9''(10M)
5+4=9 cells
PG MIL9
39''(1.00M)
30''(0.76M)
30'(9.14M)
6+6=12 cells
PGMIL10
87''(2.21M)
60''(1.52M)
100'(30.50M)
5+5+5+5=20 cells
PG MIL11
48''(1.22M)
12''(0.30M)
4'(1.22M)
2 cells
PG MIL12
84"(2.13M)
42"(1.06M)
108"(33M)
5+5+5+5+5+5=30 cells
PG MIL19
108''(2.74M)
42"(1.06M)
10'5'(3.18M)
6 cells



Military Defense

Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Military Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers
Shooting Range

Flood Control

Flood Prevention Barrier
Permanent or Semi-permanent Dike
Flood Control Retaining Wall
Protection Engineering of Seaside Area
Protecting Existing Structures
Coastal Erosion Control



Packing terms



1. Panel all packing with the pallet (steel pallet or wooden pallet)

2. bulk in the container
