358 Clearvu Anti-Climb Prison Fence Panels Wire Mesh High Security Fencing
High Security Fencing
358 security fence is also called anti climb fence which is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. 358 security fence has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our 358 security fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework is very strong resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the greatest relaxation and secured protection from inside of your own.
High Security Fencing Specifications
* Material: Q195, steel wire
* Surface treatment:
I. Black wire welded mesh + pvc coated;
II. Galvanized welded mesh + pvc coated;
III. Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)
*Specifications as follow:
| ANTI CLIMB FENCE | |||
| Panel height | 2100mm | 2400mm | 3000mm |
| Fence height | 2134mm | 2438mm | 2997mm |
| Panel width | 2515mm | 2515mm | 2515mm |
| Hole size | 12.7mm×76.2mm | 12.7mm×76.2mm | 12.7mm×76.2mm |
| Horizontal wire | 4mm | 4mm | 4mm |
| Vertical wire | 4mm | 4mm | 4mm |
| Panel weight | 50kg | 57kg | 70kg |
| Post | 60×60×2mm | 60×60×2mm | 80×80×3mm |
| Post length | 2.8m | 3.1m | 3.1m |
| Clamp bar | 40×6m slotted | 40×6m slotted | 40×6m slotted |
| Fixings | 8 gal bolt c/w permanent security nut | ||
| No. of fixings | 8 | 9 | 11 |
| Customization accepted | |||
High Security Fencing Application

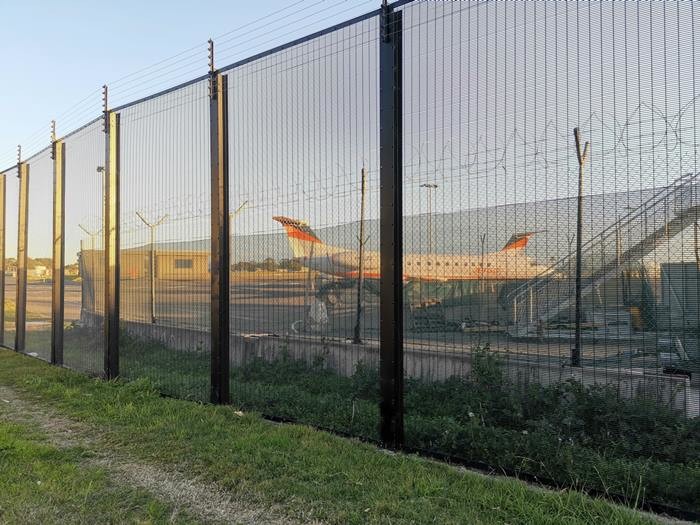

It is widely used in prison, airport, warehousing, industrial units, boundary demarcation , etc.
High Security Fencing Packing terms
358 wire mesh anti-climb high security fencing packed in bulk,wooden pallet,metal pallet
