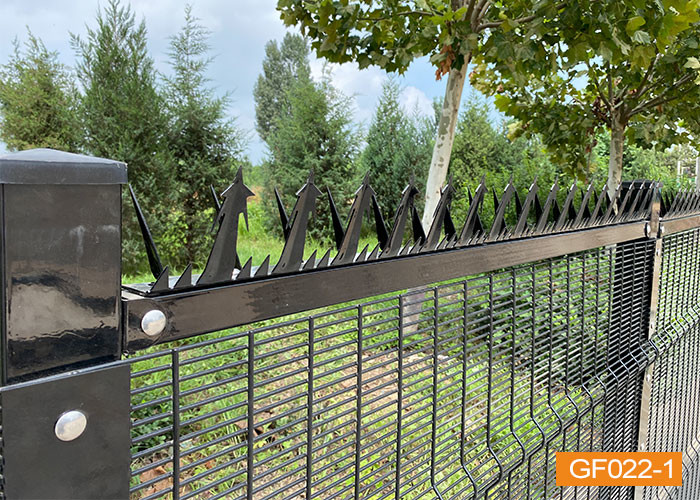

Airport Place High Security Welded With Buckle Plate Anti Climb Security Fencing
358 High Security Fence with buckle plate
LineWirex crosswire |
HoleSize | Length | Height | BendingNo. | CommonColor | Surfacetreatment |
4x3mm 4x4mm 4.5x3mm 4.5x4.5mm |
76.2x12.7mm 75x12mm |
2m 2.2m 2.4m 3m |
1800mm | 4 | Green RAL 6005 Grey RAL 7016 Black RAL 9005 |
1.Hot-dipped galvanized after black wire welded
galvanized wire welded
galvanized wire welded |
2000mm | ||||||
2200mm | 4 | |||||
2400mm | 4 | |||||
2800mm | 5 | |||||
3000mm | 5 |
358 Fence With Square Type Post
Post view | Size | Thickness | Panel height | Post Length | surface treatment |
Itype post | 44x70mm 55x100mm |
1.8mm 2mm 2.5mm 3mm |
1830mm | 240omm | 1.Black tube Hot-dipped galvanized 2.Galvanized tube pvC coated |
2030mm | 2500mm | ||||
2230mm | 2800mm | ||||
square post | 50x50mm 6Ox60mm 8Ox80mm 100x100mm |
2430mm | 300omm | ||
2800mm | 350omm | ||||
3000mm | 3700mm |

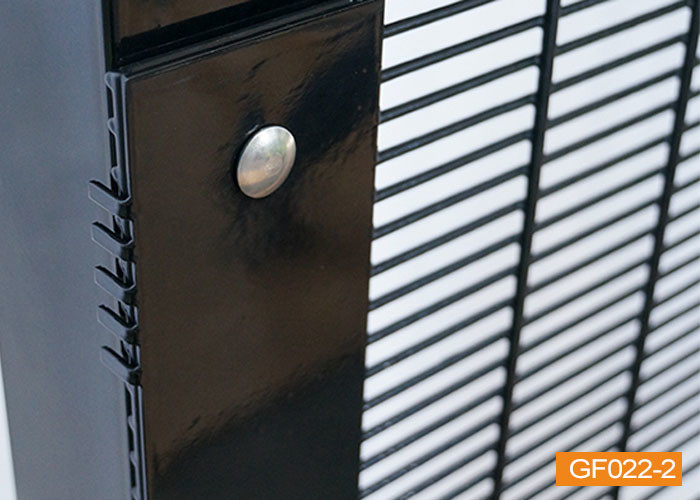

Details of the parts
Application
School
power station
commonality construction
jail
airport
military base
countryborder and other high security area and place
Exra choose the angle steel,babred wire or razor wire fence to make more security.
Feature
Surface Treatment
Surface Treatment | Min. | Max. | |
1 | Electric Galvanized | 20g/m² | 60g/m² |
2 | Hot Dipped Galvanized | 35g/m² | 700g/m² |
3 | Powders Sparyed Coating | 100 microns | 120 microns |
Produce process
Purchase the raw material wire--Zn/Ai coating test--cutting--welding panel--powder coating or hot dip galvanized--packing--Loading
Post--cutting--punching--powder coating--packing--loading
Clips--packing--loading
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
Service
Product Service
Our products offer 10 YEARS GUARANTEE.
Product customization services
We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
