Peach Post H3000mm V Mesh Security Fencing For Public Grounds

50sets
MOQ
Negotiable
Price
Peach Post H3000mm V Mesh Security Fencing For Public Grounds
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: V Mesh Security Fencing
Frame Material: Metal
Metal Type: Iron
Pressure Treated Wood Type: Heat Treated
Frame Finishing: Powder Coating
Feature: Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
Usage: Garden Fence, Highway Fence, Sport Fence, Farm Fence
Type: Fencing, Trellis & Gates
Material: Low Carbon Steel Wire
Opening Size: 50*200/55*200/50*150mm
Bending No: 2/3/4/5
Height: 1030/1230/1530/1730/1830/2030/2230/2530/3030mm
Post Type: Peach Post
Surface Treatment: Galvanized+PVC Coated
Color: White,Black
Application: Wire Mesh Fencing For Parks
High Light:

Curved V Mesh Security Fence

,

Peach Post V Mesh Security Fencing

,

Public Grounds V Mesh Security Fencing

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Payment & Shipping Terms
Packaging Details: 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Product Description

Difficult To Cut Through And Climb V Mesh Security Fencing



Description



  • Offering a variable aperture mesh panel system that is both difficult to cut through and climb, the V Mesh Security Fencing profiled rigid mesh panel system is the next step in perimeter security solutions.
  • V Mesh Security Fencing looks great around public buildings, schools, retail premises and industrial buildings. Featuring steel security clips and hex bolts fastening each panel to the galvanised 60 x 40mm RHS steel posts, this fencing system is built to last.
  • V Mesh Security Fencing conforms to open mesh steel panel fences, providing excellent quality assurances
  • The welded steel wire mesh panels feature large upper profiles for extra strength and groups of 6 wires at 25mm wire centres followed by 45mm mesh apertures. This ever-popular decorative effect gives your fencing a uniquely stylish ‘striped’ appearance and offers increased security for your fence line.



Specification Of V Mesh Security Fencing



Height: 1800mm/2000mm/2400mm/3000mm* delete as required
Nominal Height: 1.8m/2.0m/2.4m/3.0m* delete as required
Mesh & Wire: 200 x 45mm (200 x 25mm Variable) mesh; 4mm vertical and 6mm horizontal nominal wire with 3 profiles, galvanised and polyester powder-coated to 60 microns.
Posts: 60 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 47 x 25 mm steel clips galvanised and polyester powder-coated to match fencing. (1800 – 2400mm Panels ONLY)



80 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 47 x 25 mm steel clips galvanised and polyester powder-coated to match fencing. (3000mm Panels ONLY)

Fixings: M8 x 95 Cup square bolt with permacone nut
Set Posts: Set posts in holes 300 mm diameter x 800** mm deep, filled not less than half the depth with concrete
Maximum Posts Centres: 3010mm
Bottom of Fencing to Be: approx. 50 mm above final ground level.
Other Requirements: Please contact us for details


Feature



1. Reduce mesh and prevent scaling

2. Thicker wires make the panel system stronger

3. Prevent cutting

4. Projects that can be used for a large number of personnel flow. For example, schools, colleges and universities.

5. Provide a higher level of protection



Application Of V Mesh Security Fencing

  1. Commercial grounds (Corporation, hotel, supermarket)
  2. Private grounds (Courtyard, Villadom)
  3. Public grounds (Park, zoo, train or bus station, lawn);
  4. Road and transit (Highway, railway or road city transit);
  5. 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc

Process



1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading

2.Post cutting--punching hole on the post -- Powder coating--Loading



Why choose us?



1. Offer free stock sample
2.Offer free design
3.Offer factory inspecition report:ISO-9001 or you need other certifications we provide
4.Offer quality assurance contract,refund money in case of bad quality
5.Offer Trade Assurance:Our supports Trade Assurance – A free service that protects your orders from payment to delivery.Our Trade Assurance Limit: US $167,000
6.Accepts third-party testing of product quality



Our Services



1.20 hours online service
2.Product experts free to provide you with product
customization services
3.Free design and drawings for you.
4.Product installation guide
5.Solve product shipping problems

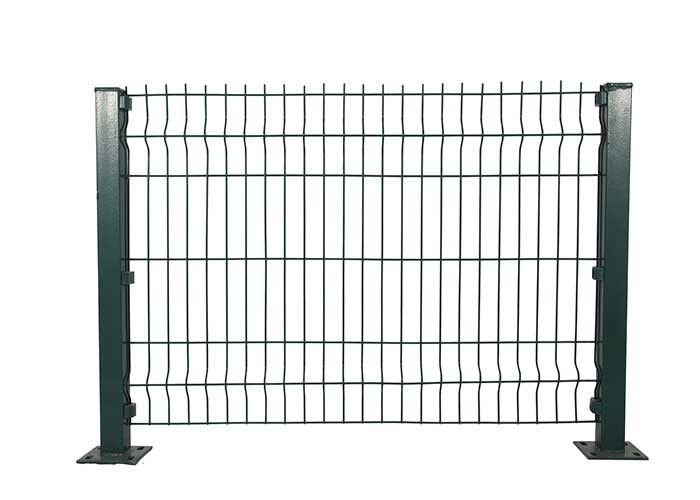

Peach Post H3000mm V Mesh Security Fencing For Public Grounds 0

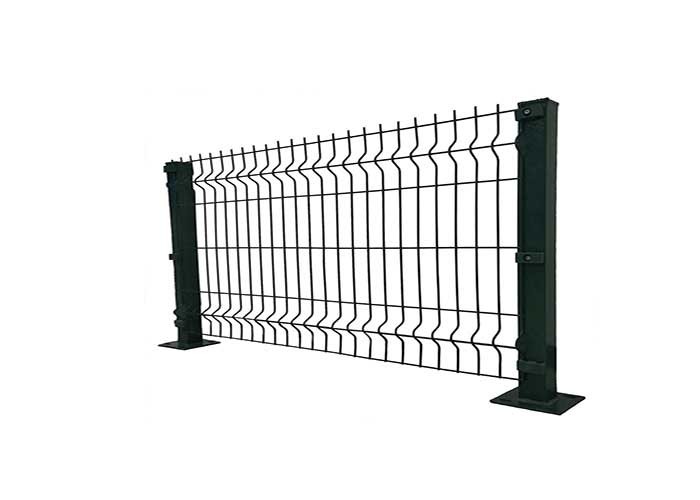

Peach Post H3000mm V Mesh Security Fencing For Public Grounds 1
