Product Details:
Payment & Shipping Terms:
|
Model Number: | V Mesh Security Fencing | Frame Material: | Metal |
---|---|---|---|
Metal Type: | Iron | Pressure Treated Wood Type: | Heat Treated |
Frame Finishing: | Powder Coating | Feature: | Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof |
Usage: | Garden Fence, Highway Fence, Sport Fence, Farm Fence | Type: | Fencing, Trellis & Gates |
Material: | Low Carbon Steel Wire | Opening Size: | 50*200/55*200/50*150mm |
Bending No: | 2/3/4/5 | Height: | 1030/1230/1530/1730/1830/2030/2230/2530/3030mm |
Post Type: | Peach Post | Surface Treatment: | Galvanized+PVC Coated |
Color: | White,Black | Application: | Wire Mesh Fencing For Parks |
High Light: | Garden Bending V Mesh Security Fencing,100X300mm V Mesh Security Fencing,100X300mm V Mesh safety Fencing |

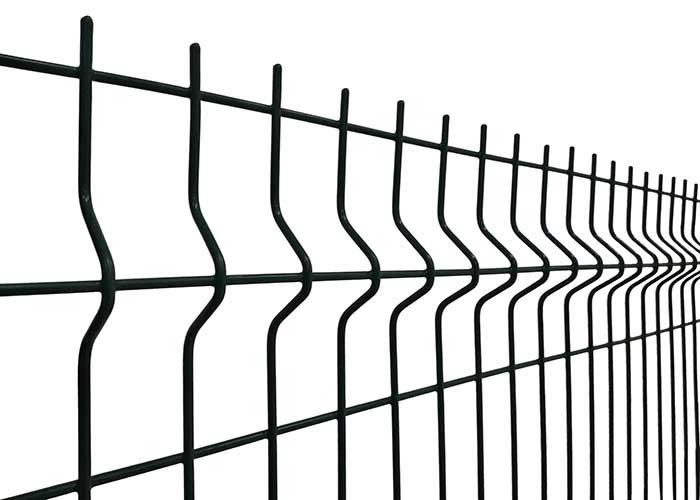

Garden Bending V Mesh Security Fencing
Specification Of V Mesh Security Fencing
Line wire x Cross wire |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm
|
2m 2.2m 2.4m 2.5m 2.8m 3m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded |
Specification of Square post
Size | 40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm |
Thickness | 1.2mm, 1. 5mm, 2.0mm. |
Height | 1800mm,2100mm,2300mm,2500mm or as your request |
Surface Treatmenq | Hot -dipped galvanized, PVC, hot galva nized+PVC |
clips | Plastic clip, metal clip |
Description
Designed to offer a low-level physical perimeter security on a budget, the name actually refers to any rigid mesh panel that has the identifiable V Profile to it.
Normally manufactured from a single wire, electronically welded to the rear at the horizontal and vertical joints. V Mesh Security Fencing tends to have apertures of 200mm by 50mm.
Our product feature looks at the various V Mesh Security Fencing in the market place and discusses the different features and aspects of them and how you can pick the right one when you are specifying your next fencing project.
Feature
1. Reduce mesh and prevent scaling
2. Thicker wires make the panel system stronger
3. Prevent cutting
4. Projects that can be used for a large number of personnel flow. For example, schools, colleges and universities.
5. Provide a higher level of protection

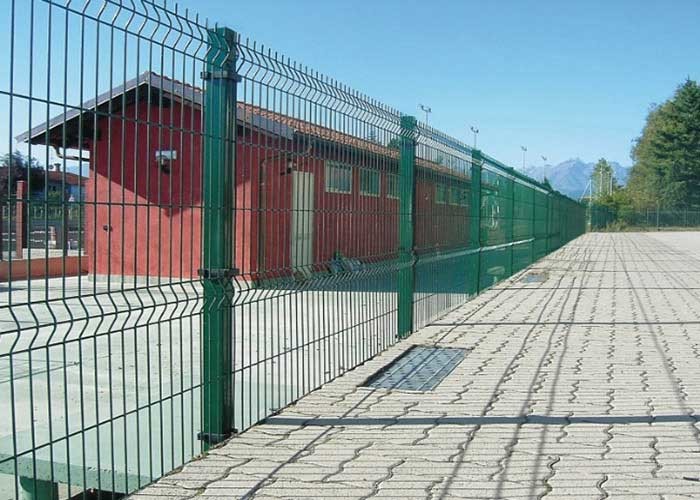

Application Of V Mesh Security Fencing
Process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
