I Post 358 Security Fence
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 358 High Security Fence
Material: Low Carbon Iron Wire
Package: Plastic Film + Pallet
Wire Diameter: 3.0/4.0mm
Hole Size: 3''*1/2''
Post Type: I Type Post
Feature: Anti-cutting And Anti-climbing
Application: School,Jail,Airport
Color: Sliver,black,green
High Light:

I Post 358 Security Fence

,

Prison Site 358 Security Fence

,

Galvanized 358 Security Fence

Basic Infomation
Place of Origin: Hebei, China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF019
Payment & Shipping Terms
Packaging Details: 1.panel with pallet and post bulk 2.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Product Description

Africa Market Prison Site Popular Welded Powder Coating 358 High Security Fence





358 High Security Fence



Anti-climb fence, also called High Security Fence,358 Fence, which is well-known as anti-climb & anti-cut.Using high quality carbon steel wire to weld a fence panel, it can provide privacy in some extent.Giant High security fences are used to give enduring and secure protection for the public buildings,commercial properties etc. High security fence can also be worked with electric alarm, detection systems( no blind spots for CCTV) etc. It is also widely used in military, airports, prisons etc.

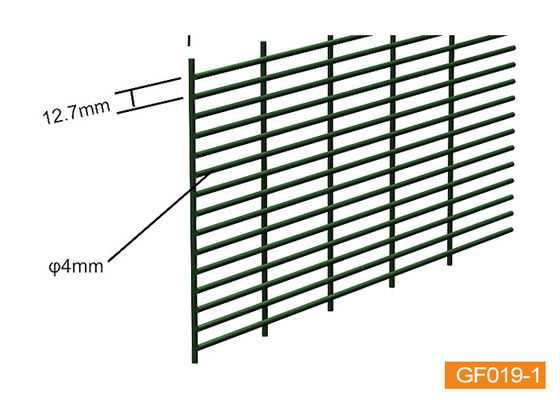

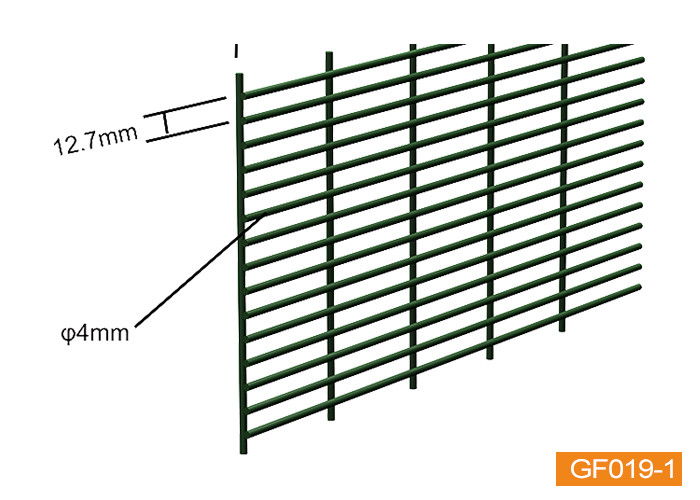

Specifications of the panels
LineWirex
crosswire
HoleSize Length Height BendingNo. CommonColor Surfacetreatment
4x3mm
4x4mm
4.5x3mm
4.5x4.5mm
76.2x12.7mm
75x12mm
2m
2.2m
2.4m
3m
1800mm 4 Green RAL 6005
Grey   RAL 7016
Black  RAL 9005

1.Hot-dipped galvanized after

black wire welded


2.PVC coated after

galvanized wire welded


3.PE coated after

galvanized wire welded

2000mm
2200mm 4
2400mm 4
2800mm 5
3000mm 5

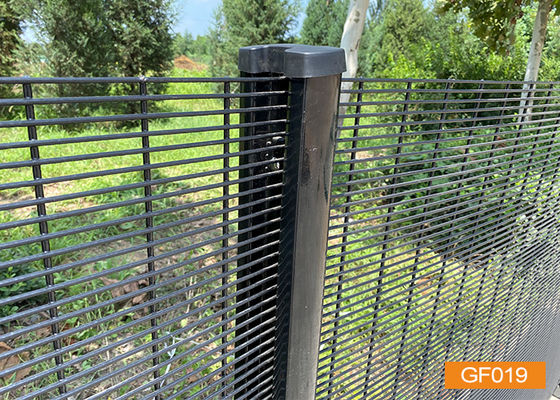

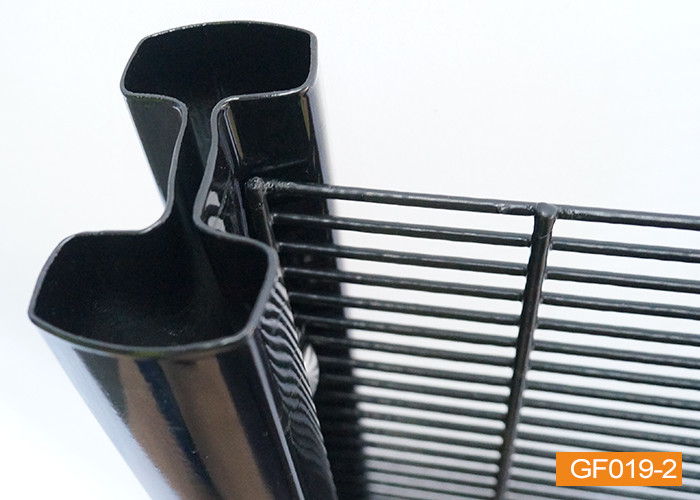

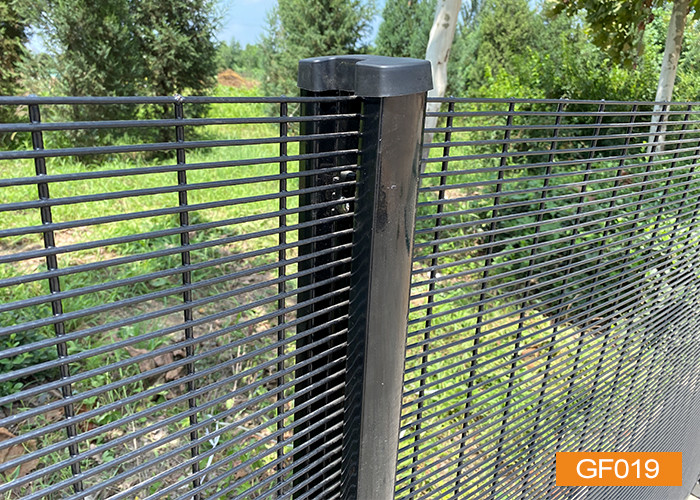

358 Fence With I Type Post and Square Post

Post view Size Thickness Panel height Post Length surface treatment
Itype post 44x70mm
55x100mm
1.8mm
2mm
2.5mm
3mm
1830mm 240omm 1.Black tube Hot-dipped galvanized
2.Galvanized tube pvC coated
2030mm 2500mm
2230mm 2800mm
square post 50x50mm
6Ox60mm
8Ox80mm
100x100mm
2430mm 300omm
2800mm 350omm
3000mm 3700mm

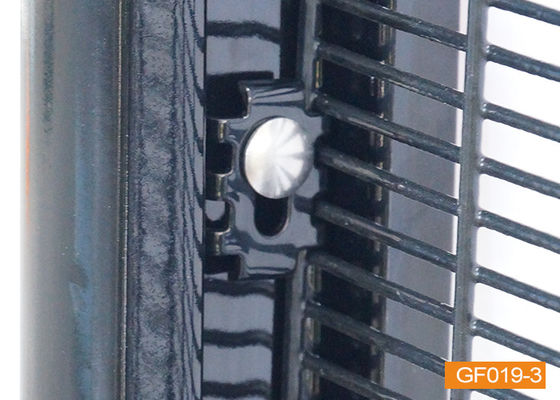

Details of the parts


 ​ Application



  • School

  • power station

  • commonality construction

  • jail

  • airport

  • military base

  • countryborder and other high security area and place

    Exra choose the angle steel,babred wire or razor wire fence to make more security.

Feature



  1. Anti-cutting
  2. Anti-climbing
  3. High security
  4. Beautiful design
  5. Easy assembled
  6. Anti - corrosion

Surface Treatment



  Surface Treatment Min. Max.
1 Electric Galvanized 20g/m² 60g/m²
2 Hot Dipped Galvanized 35g/m² 700g/m²
3 Powders Sparyed Coating 100 microns 120 microns



Produce process



Purchase the raw material wire--Zn/Ai coating test--cutting--welding panel--powder coating or hot dip galvanized--packing--Loading

Post--cutting--punching--powder coating--packing--loading

Clips--packing--loading



Packing terms



1. Panel all packing with the pallet (steel pallet or wooden pallet)

2. Clips packing in the carton box



Quality Control Process



1. Raw material test the Zn/Ai

2. Semi-finished product test the size and quality

3. Finished Product’s Test the surface adhesive force (usually the post surface test )

4. Finished Product’s installation



Service



Product Service

Our products offer 10 YEARS GUARANTEE.

Product customization services

We can customize products according to your requirements, including design and drawing.

After-sales service

Our after-sales service start immediately after signing the contract.

1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.

2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.

3.Do our best to help customer arrange the shipment and customs clearance.

4.Installation, maintenance and repair instructions with full information.
