| Place of Origin: | Hebei, China |
| Brand Name: | HGMT |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF001 |
Home Outdoor Decorative Welded Wire Rigid Mesh Metal Curved Panel With Dutch Post
Curved Panel With Dutch Post Introduction
V Mesh Security Fencing with Dovetail Type Post Description
The process of V Mesh Security Fencing is simple, the net itself is welded with high quality galvanized wire, and then again PVC coated ,then through a special column and clipped together, the overall structure is simple and generous. Main market is Europe, and most countries of the world also have some demand .
V Mesh Security Fencing with Dovetail Type Post , 3D fence also named V mesh fence or Curve mesh fence, it has simple structure ,easy installation and nice appearance
the panel with curves more stable and stronger.
Curved Panel With Dutch Post Size
| PVC Coated Welded Mesh fence/Garden Fence specifications | ||
| 1. Welded mesh Fence Panel(With or Without Curves) | Material | Low carbon steel wire |
| Wire diameter | 3.0mm ~ 6.0mm; | |
| Opening(mm) | 50X100,50X120,50X150,50X200,75X150,75X200 | |
| Height | 0.8 ~ 2.0m; less than 4.0m is available | |
| Width | 2m ~ 3.0m | |
| Panel Type | With or without curves are both available as request. | |

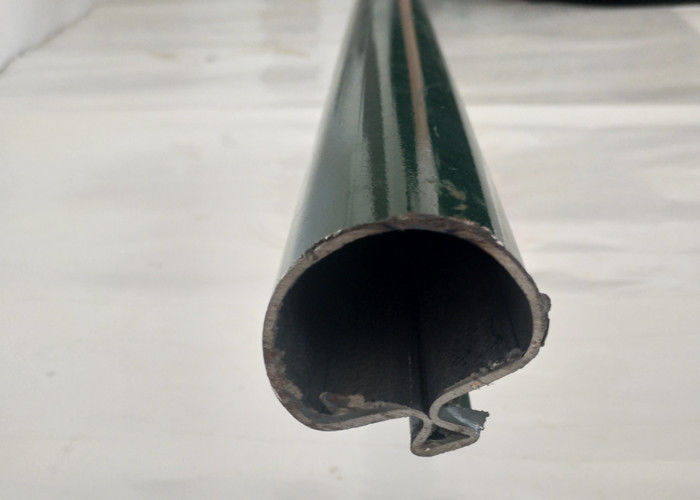

| 2. Welded Mesh Fence Post | Dutch Post | 48*1.5/1.8/2mm；60*1.5/1.8/2mm |
| Post thickness | 1.0mm;1.1mm;1.2mm;1.5mm;1.8mm;2.0mm;2.5mm. | |
| Bottom | with base or embedded underground. | |
| Surface Treatment | Galvanized tube PVC coated. | |
| 3. Welded Mesh Fence Finishing | 1. Hot-dip Galvanized | |
| 2. PVC powder spraying coated or PVC powder dipping coated | ||
| 3. Galvanized +PVC powder coated | ||
| 4. Mesh Fence Packing | 1) With pallet; 2) Bulk in container. | |
Applications of our Fencing products:
1. Road and transit(highway, railway, road, city transit)
2. Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
3. Private grounds(courtyard, villadom)
4. Public grounds(park, zoo, train or bus station, lawn)
5. Commercial grounds(corporation, hotel, supermarket)
Curved Panel With Dutch Post Application
