The gabion net is made of high corrosion, high-strength, ductile low-carbon steel wire or the above steel wire covered with PVC by mechanical weaving. The box-shaped structure made of this net is the gabion cage. According to ASTM and EN standards, the diameter of low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire of the gabion mesh is not less than 38kg/m2, the weight of the metal coating is generally higher than 245g/m2, and the diameter of the edge line of the gabion mesh is generally larger than the diameter of the mesh wire. The length of the twisted part of the double wire shall not be less than 50mm. In order to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
| Specification of Hexagonal Gabion Mesh | |||||
|
Material |
Wire Diameter(mm) | Selvding Wire(mm) | Lacing Wire(mm) | Mesh Hole(mm) | Gabion Size(m) |
|
1. Galvanizing 2. Hot dip galvanizing 3. Galfan (zinc aluminum alloy) zinc 5% aluminum mixed rare earth alloy steel wire zinc 10% aluminum mixed rare earth alloy steel wire 4. PVC coated |
2.0mm 2.2mm 2.4mm 2.7mm 3.0mm 3.5mm 4.0mm |
3-4mm |
2.0-2.2mm |
60*80mm 80*100mm 100*120mm 120*150mm customized |
2*1*0.5m 2*1*1m 3*1*1m 4*1*2m 4*2*0.3m 6*2*0.3m customized |
| Specification of Gabion Reno Mattress | |||||
|
Material |
Wire Diameter(mm) | Selvding Wire(mm) | Lacing Wire(mm) | Mesh Hole(mm) | Gabion Size(m) |
|
1. Galvanizing 2. Hot dip galvanizing 4. PVC coated |
2.0mm 2.2mm 2.4mm 2.7mm 3.0mm 3.5mm 4.0mm |
3-4mm |
2.0-2.2mm |
60*80mm 80*100mm 100*120mm 120*150mm customized |
3*2*0.3m 4*2*0.3m 5*2*0.3m 6*2*0.3m customized |
| Note: All sizes and materials of the weled gabion can be customized according to your request. | |||||
Product application range

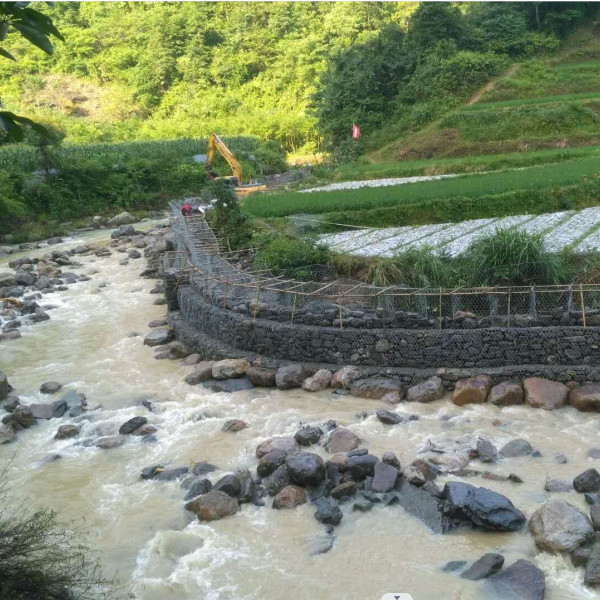

· Control and guide rivers and floods · Flood discharge and diversion dams
· Rock fall protection · Preventing soil erosion · Bridge protection · Soil fixation structure · Coastal Defense Engineering · Port Engineering · Retaining wall · Road protection
Galvanized wire --- weave --- cut --- edge-fold --- product --- compress --- finished
According to customer requirements, provide different packaging. 1. Standard packing---Bulk. Save space, packaging costs, and shipping costs without using pallets. 2. Customized packing. The cost is high, but the loading and unloading is convenient, saving labor costs. 3. Custom labels. Warehousing: Our factory has a large warehouse, which is clean and dry. A short-term storage screen service is available.
Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety metal fences. We engaged in the production, research, development, sales, and services of metal fences, gates, and barriers.
BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough knowledge on how to produce top-quality fencing which led us to become a trusted supplier & exporter globally.
As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing metal fences with excellent quality. With professional experience in the metal fence business, our skilled staff members are able to provide the highest level of support, including drafting and engineering of our products. In order to meet our clients’ project requirements.
Our Service
1. Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .
FAQ
1.Are you a factory?
Answer:yes,we are a factory that manufactured fence for 32 years.
2.Can you send the cargo to seaport? Where is your nearest sea port?
Answer:yes, sure ,our nearest seaport is Xingang Port.
3.How about the height fence?
Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.
4.Can I have more details of the fence, such as real picture and the accessories?
Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.
5.Can you make the color according to our request?
Answer: yes,we can ,the common color is Green,Yellow,White,Gray. More Questions If you have more question, please contact us for best service Contact Now
6.How long does it take to produce?
3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.
7.Do I need to hire a professional installer for my metal fence?
All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
If you have more question, please contact us for best service
